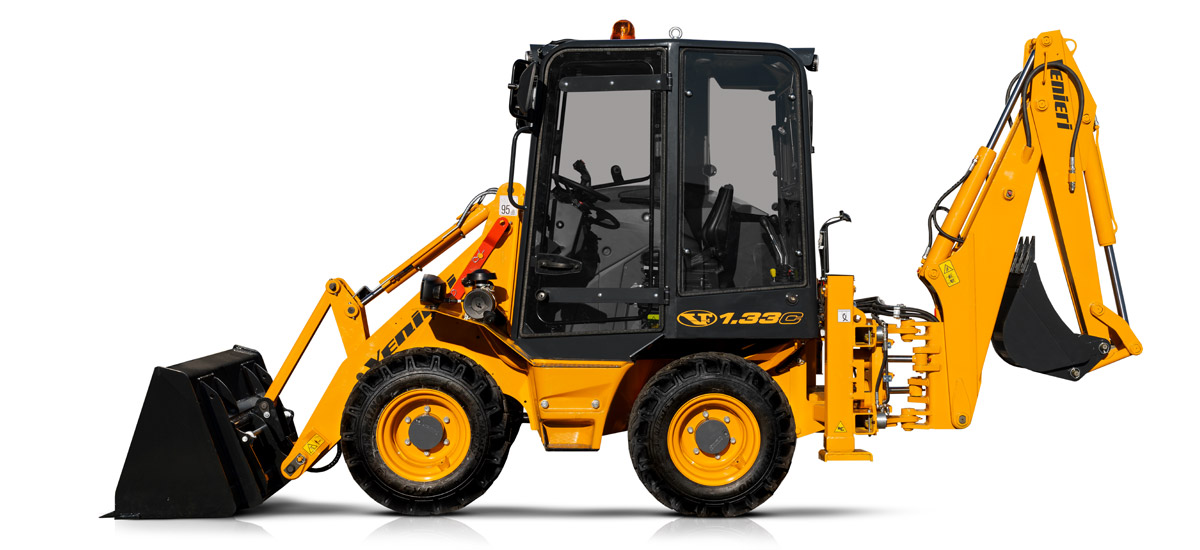

compact backhoe loader

1.33C

Download

Do you have any questions?

Contact us at the office nearest to you or submit a inquiry

Linkage PARALLEL
Engine Max Power 53 HP
Engine Emission TIER 4f
Breakout Force 5,071 lbs
Static Tipping Load, Full Turn 4,409 lbs
Bucket Capacity, Min/Max 0.6 cu/yd
Max Weight 9,105 lbs
Tyres 12 – 16,5
Forks Load Capacity (EN474-3) 2,646 lbs
Max Speed 12 mph
Max Digging Depth, Std./Telescopic 9’0” – 10’8”

BASIC MACHINE

  • Battery switch
  • Maintenance tool set
  • Battery switch
  • Maintenance tool set
  • Steering and oscillating front axle with 15°
  • Steering rear axle and fixed to chassis
  • Towing hook (anchoring and vehicle recovery, not towing equipment)
  • Rotating lamp
  • Soundproofing
  • User manual and
  • Spare parts calatogue
  • Type approval for road circulation
  • Arm and bucket lock safety device
  • Device for bucket positioning parallel to the ground
  • Floating arm system
  • Double-speed hydraulic fan
  • Hydraulic service disk brake on rear axle
  • Inch pedal integrated on the brake pedal
  • Manual accelerator
  • LED Road lights front and rear

CABIN EQUIPMENT

  • ROPS/FOPS 1st Level, pressurized and soundproofed
  • Front and rear windscreen wiper with washer
  • LED work lights (2 front + 2 rear)
  • Document compartment
  • Seat with mechanical suspension
  • Buzzer
  • Cabin carpet
  • Radio preparation
  • Supplementary socket 12V
  • Ceiling lamp
  • Rear view mirrors
  • Seat belt
  • Instrumentation and dashboard with LCD display

MAIN EQUIPMENTS

REAR / BACKHOE LOADER

  • Rear excavator arm STD
  • Rear arm locking system for travelling on the road

BASIC MACHINE

  • Fuel preheating (cold climates)
  • Self-locking proportional differential on the rear axle
  • Lever device for forward movement speed reduction
  • Safety block valves on bucket cylinder
  • Safety block valves on lifting cylinder
    “Venieri GLOBAL” system monitoring (Annual subscriptioin not included)
  • “Crab” steering
  • Water preheating system
  • Biodegradable hydraulic oil
  • Hydraulic oil ISO 46 (cold climates)
  • Vortex prefilter

CABIN EQUIPMENT

  • Canopy ROPS/FOPS I
  • Seat with pneumatic suspension
  • Air Conditioning
  • First-aid kit
  • Fire extinguisher 4.41lb
  • Safety glass breaker

MAIN EQUIPMENTS

FRONT / LOADER

  • Hydraulic quick coupler
  • Mixing bucket
  • 4-in-1 multipurpose bucket
  • Hight material bucket
  • Universal lifting forks
  • Shedder
  • Hydraulic brush cutter
  • Asphalt / concrete planner
  • Asphalt planner
  • Snow blower
  • Snow blade and “V” type snow blade
  • Hand operating hammer
  • Polishing brush
  • Sweeper
  • Trencher
  • High-tip bucket
  • High flow kit
  • Unpressurized return line
  • Double auxiliary line

REAR / BACKHOE LOADER

  • Telescopic rear arm
  • Rear excavator arm with hydraulic lateral translation
  • Hydraulic Hammer
  • Bidirectional hydraulic drill
1.33C

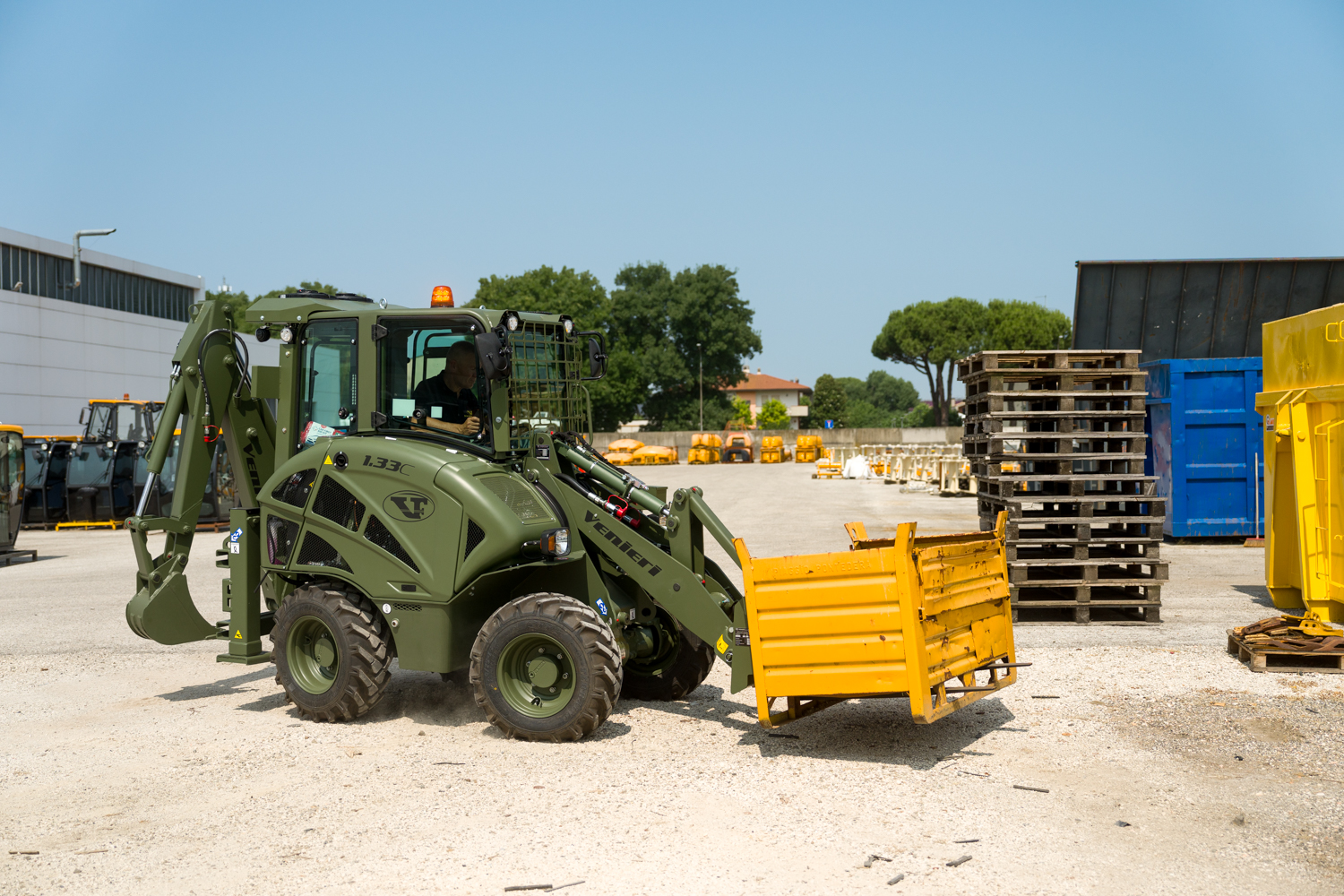

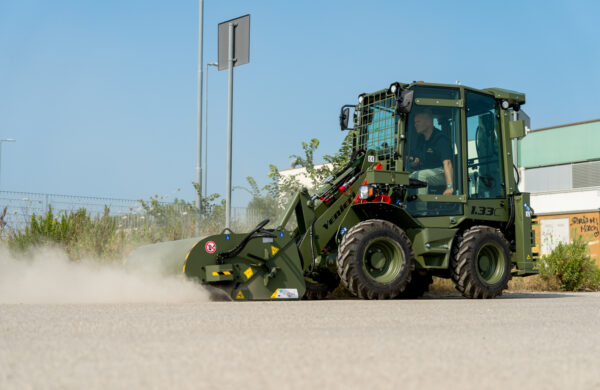

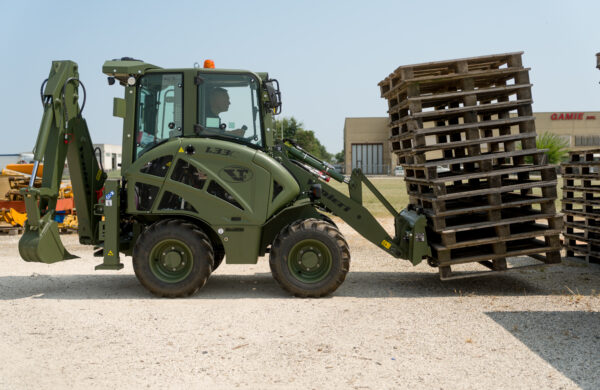

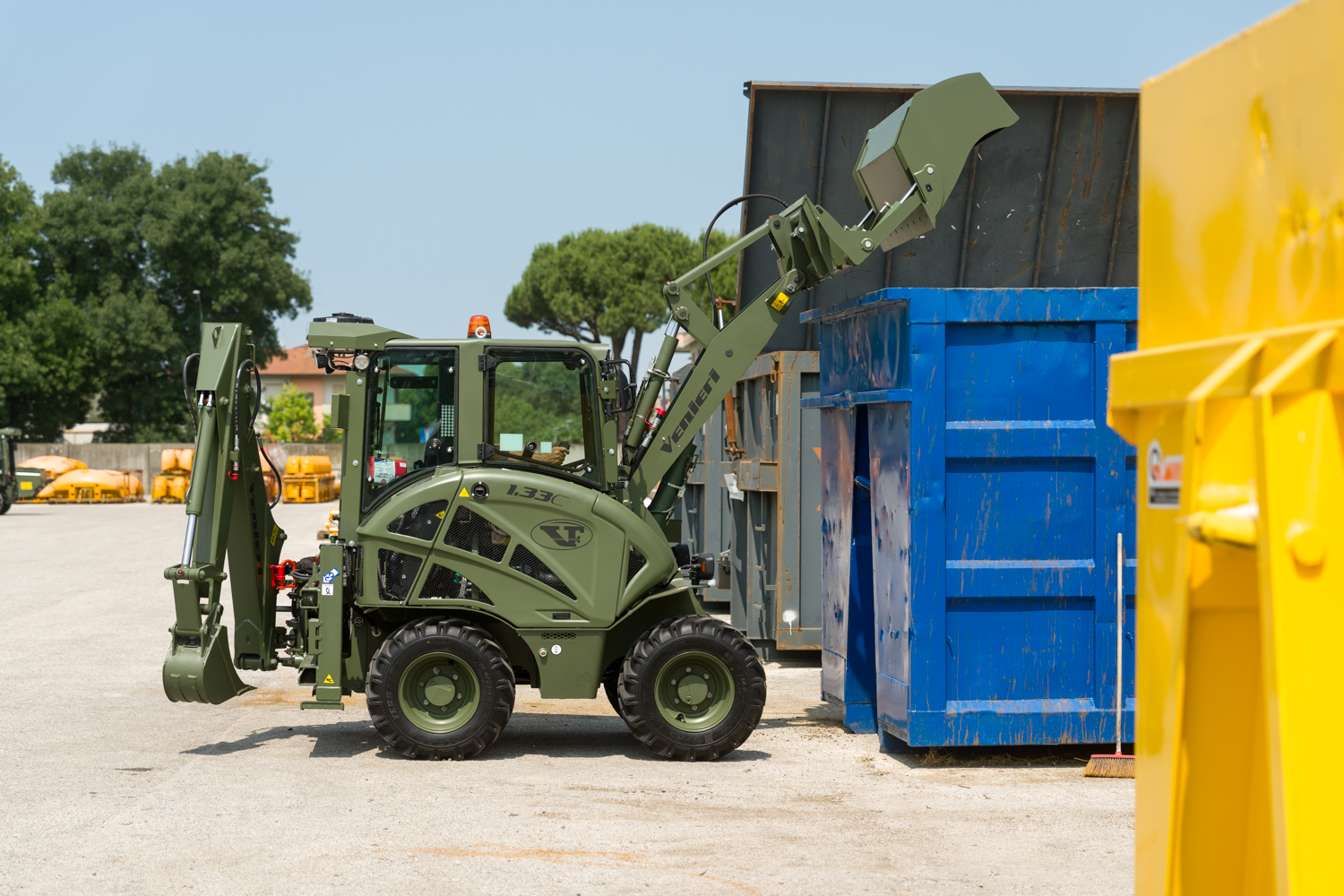

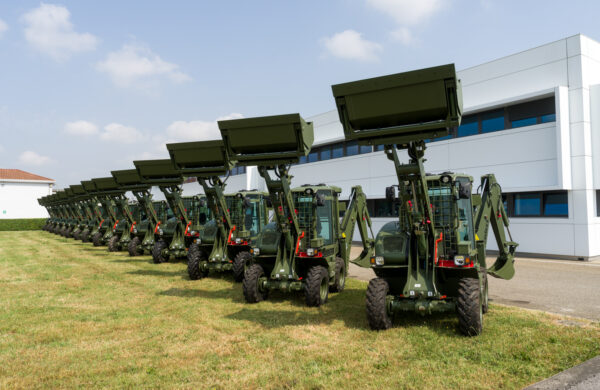

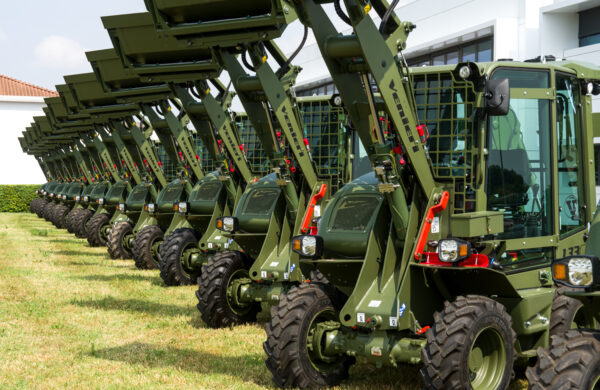

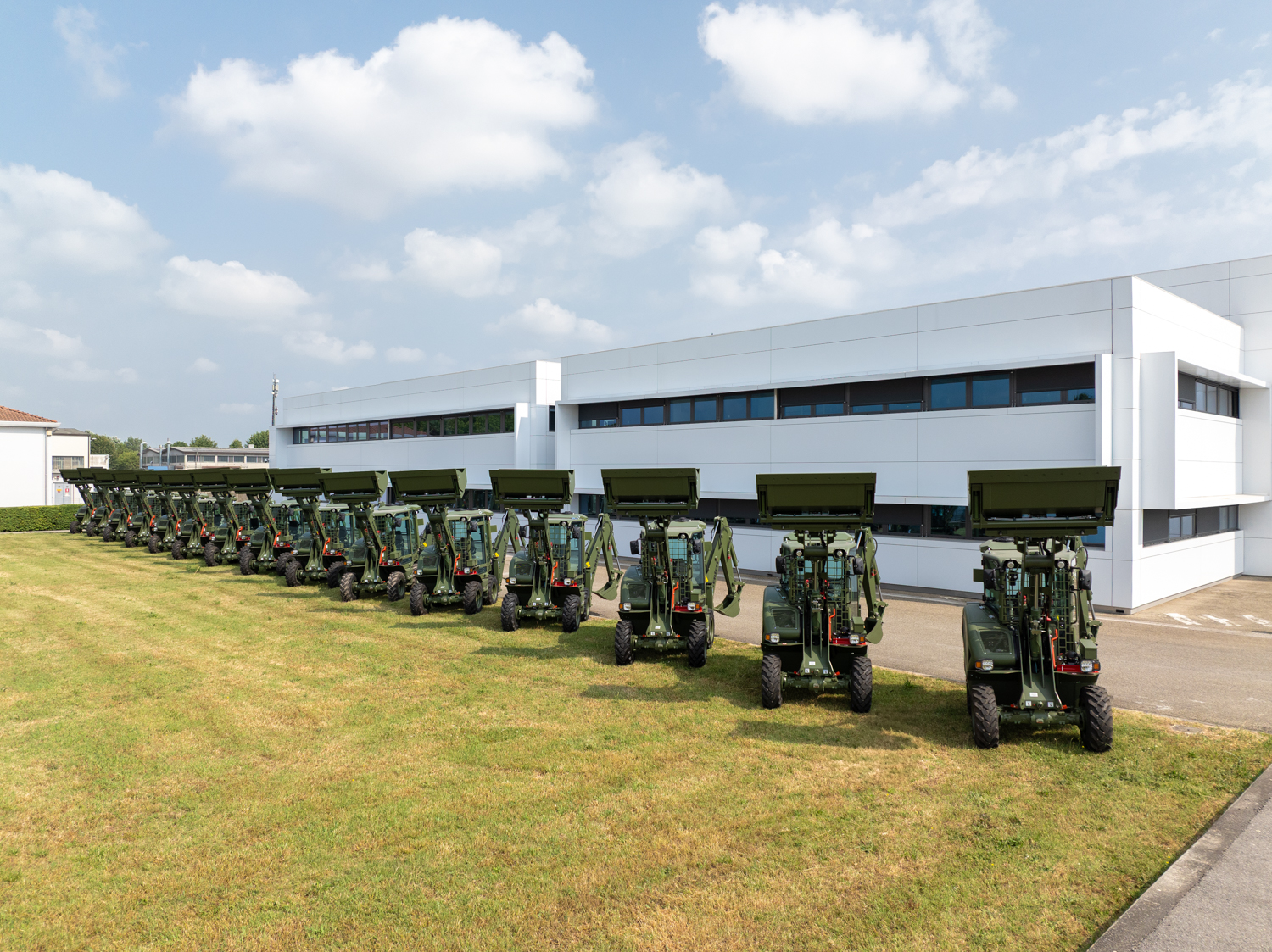

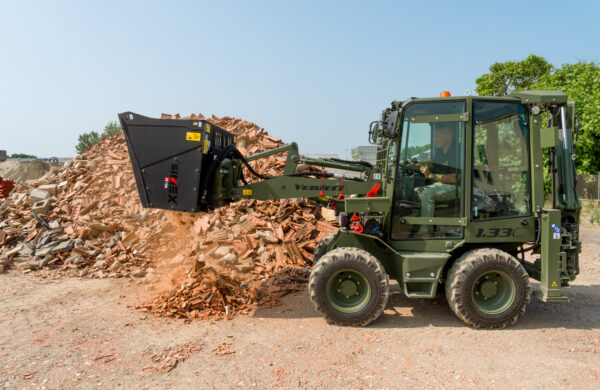

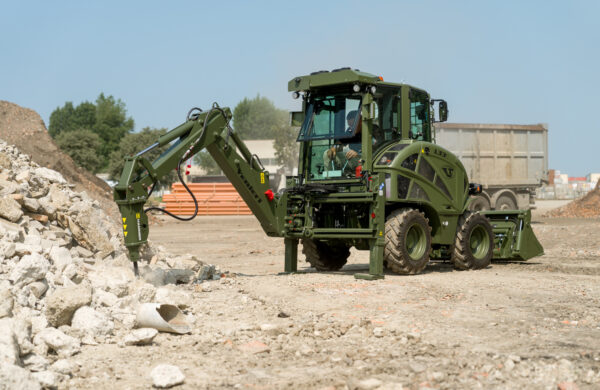

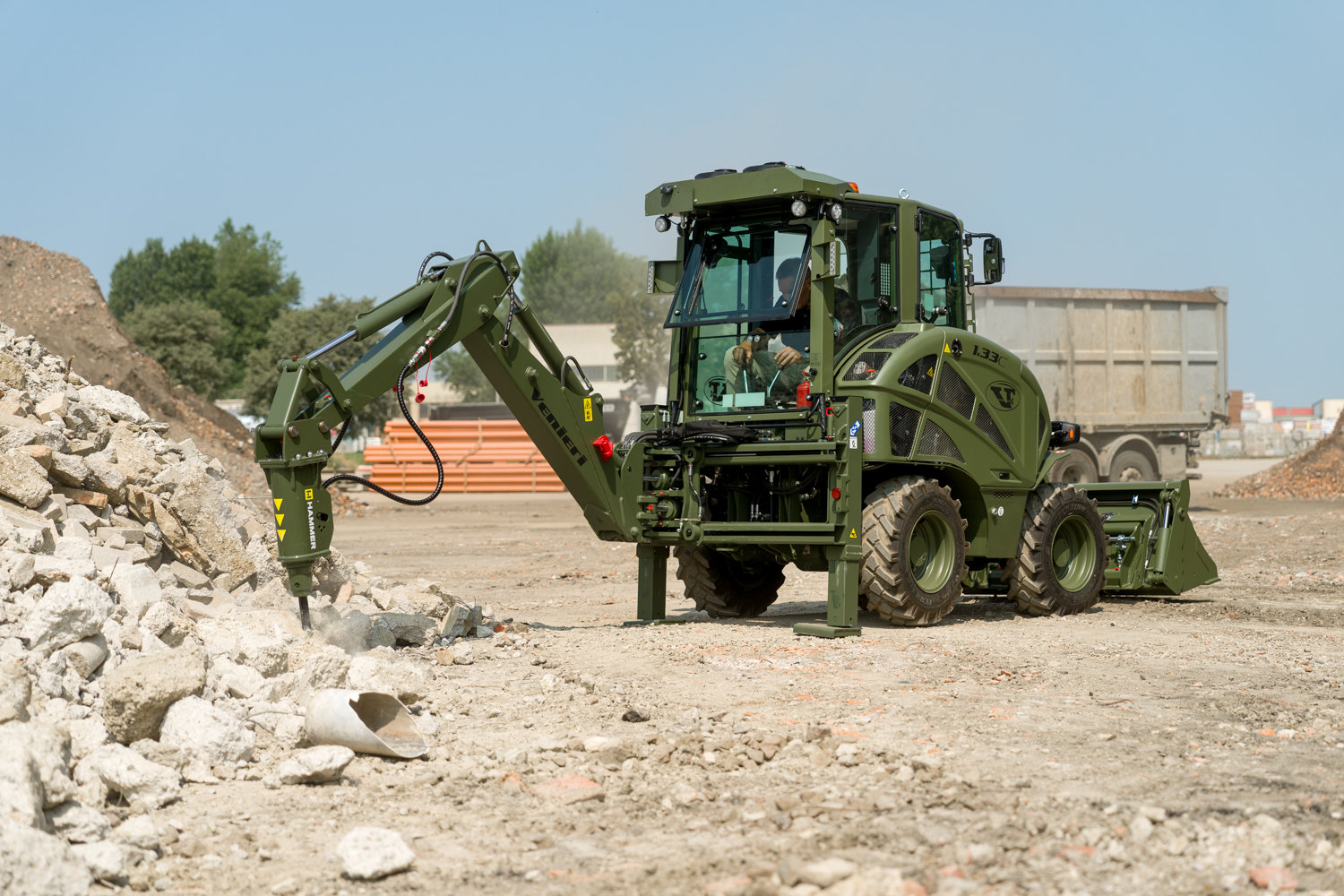

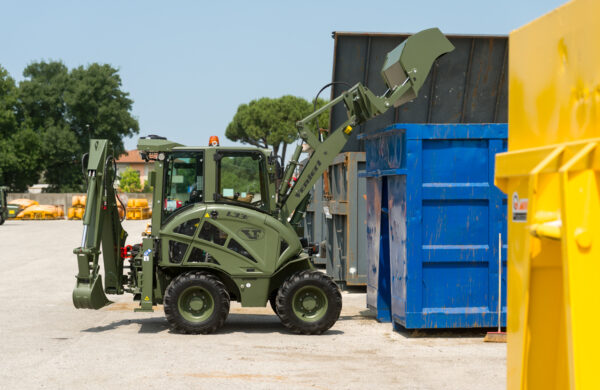

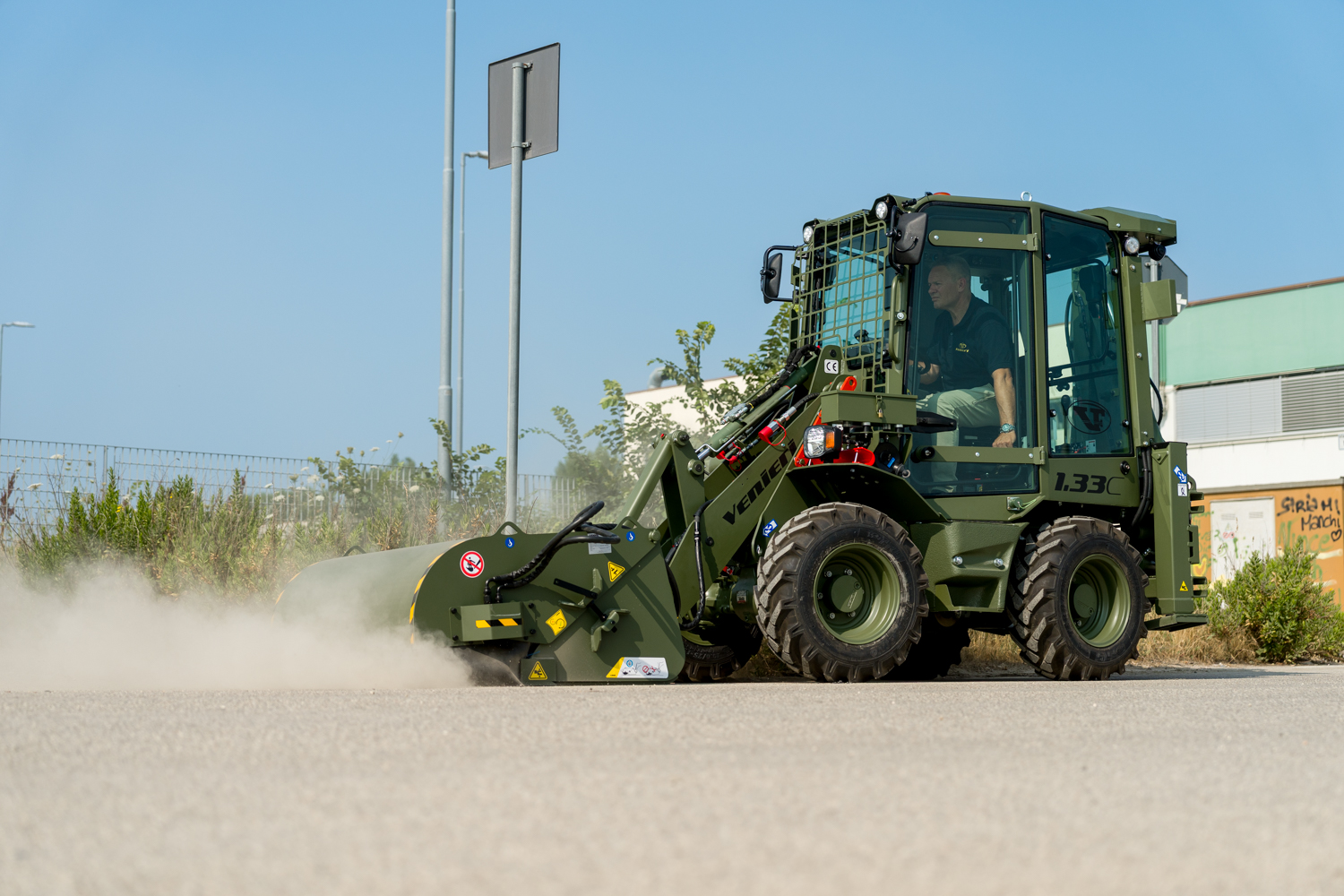

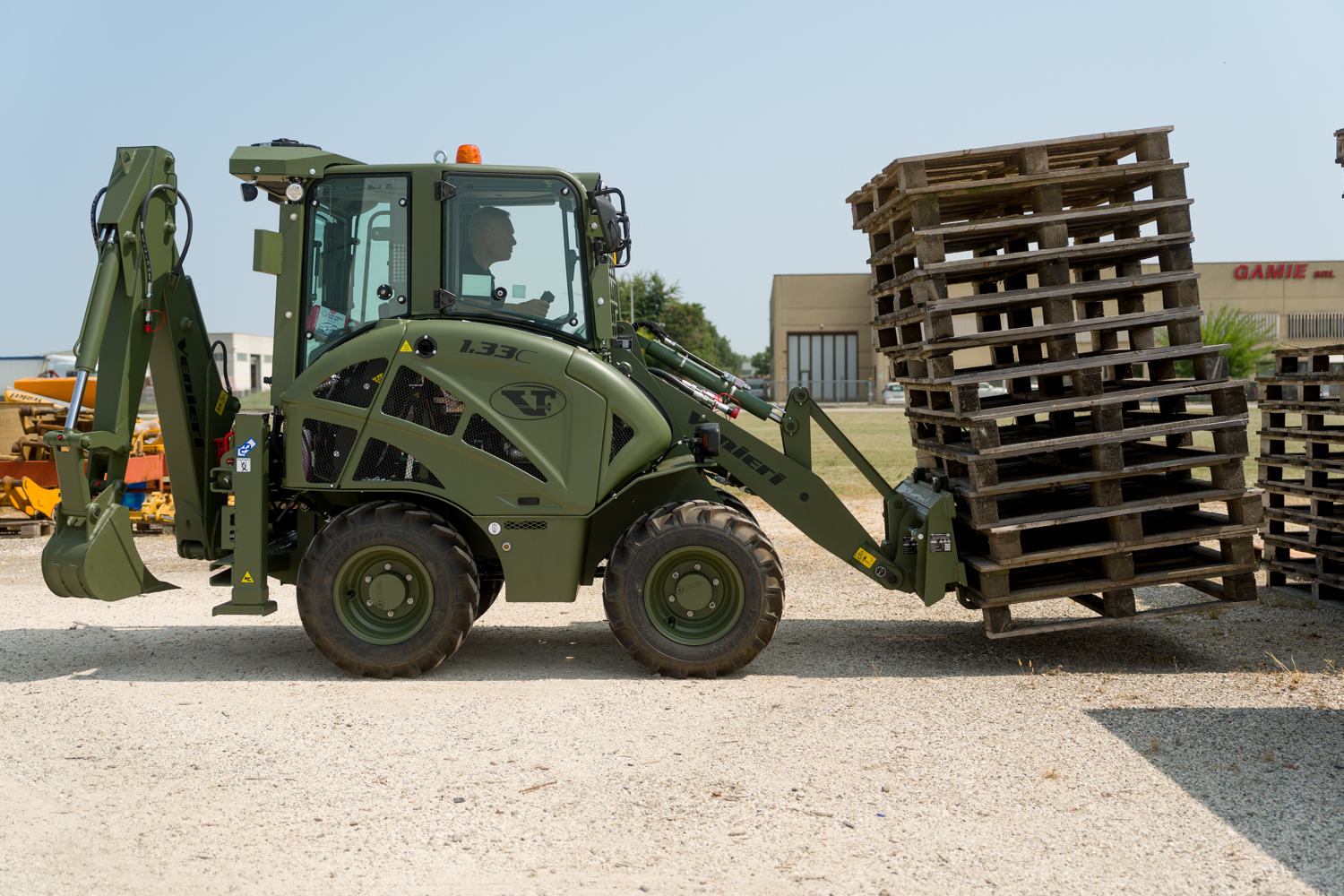

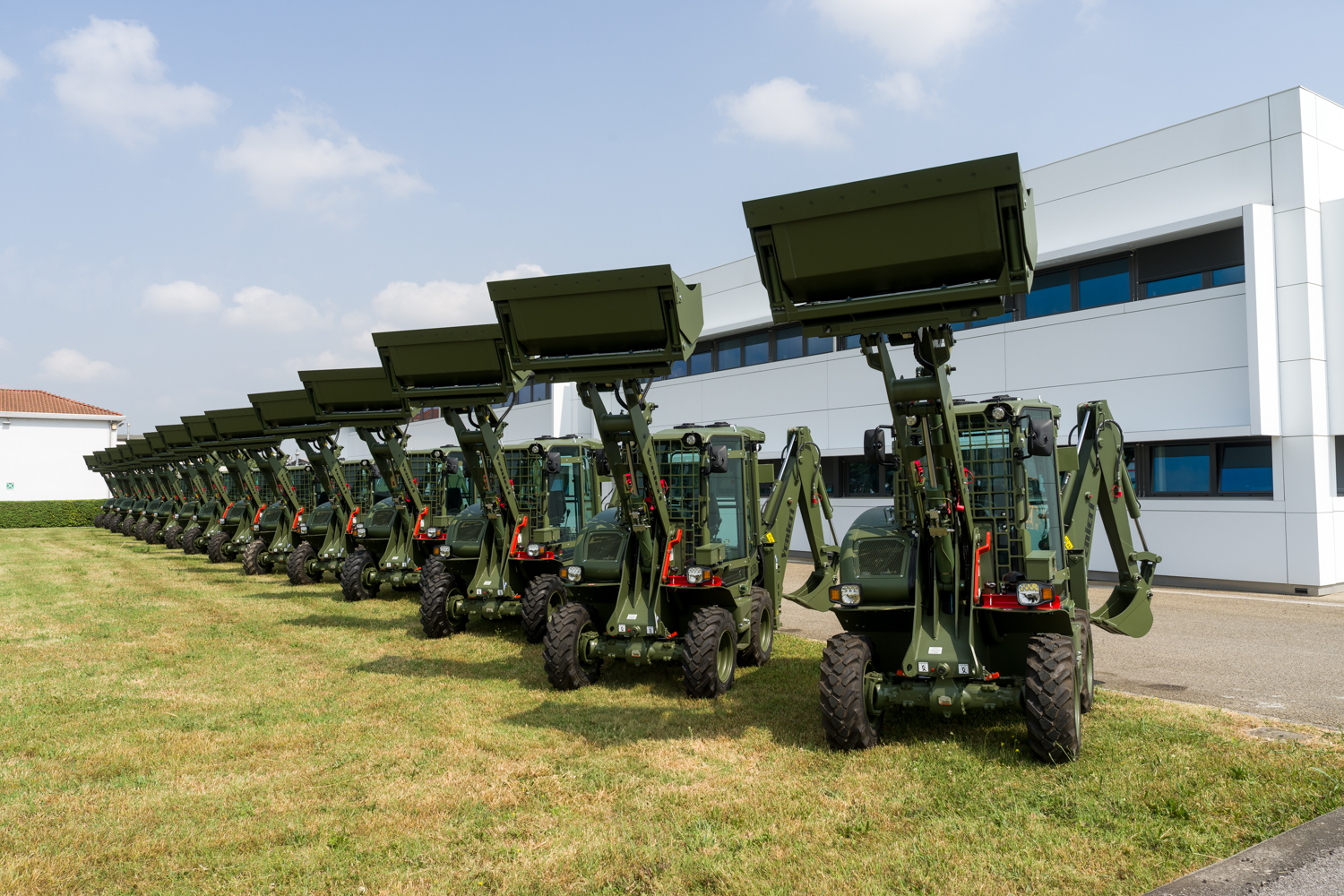

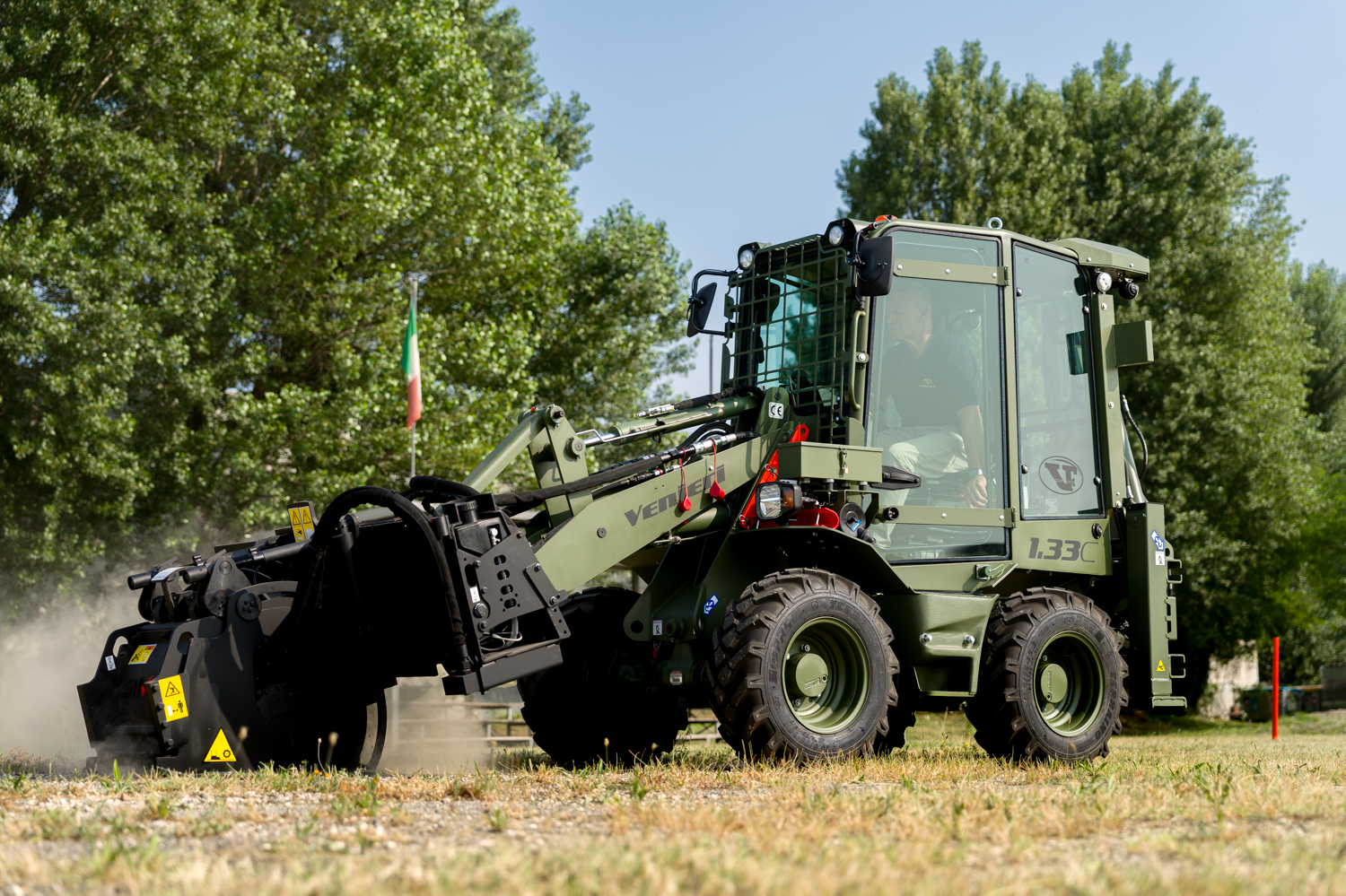

GALLERY
