Linkage PARALLEL
Engine Max Power 53 HP
Engine Emission TIER 4f
Breakout Force 5,071 lbs
Static Tipping Load, Full Turn 4,409 lbs
Bucket Capacity, Min/Max 0.6 cu/yd
Max Weight 9,105 lbs
Tyres 12 – 16,5
Forks Load Capacity (EN474-3) 2,646 lbs
Max Speed 12 mph

BASIC MACHINE

• Battery switch
• Maintenance tool set
• Battery switch
• Maintenance tool set
• Steering and oscillating front axle with 15°
• Steering rear axle and fixed to chassis
• Towing hook (anchoring and vehicle recovery, not towing equipment)
• Rotating lamp
• Soundproofing
• User manual and
• Spare parts calatogue
• Type approval for road circulation
• Arm and bucket lock safety device
• Device for bucket positioning parallel to the ground
• Floating arm system
• Double-speed hydraulic fan
• Hydraulic service disk brake on rear axle
• Inch pedal integrated on the brake pedal
• Manual accelerator
• LED Road lights front and rear

CABIN EQUIPMENT

• ROPS/FOPS 1st Level, pressurized and soundproofed
• Front and rear windscreen wiper with washer
• LED work lights (2 front + 2 rear)
• Document compartment
• Seat with mechanical suspension
• Buzzer
• Cabin carpet
• Radio preparation
• Supplementary socket 12V
• Ceiling lamp
• Rear view mirrors
• Seat belt
• Instrumentation and dashboard with LCD display

MAIN EQUIPMENTS

REAR / BACKHOE LOADER

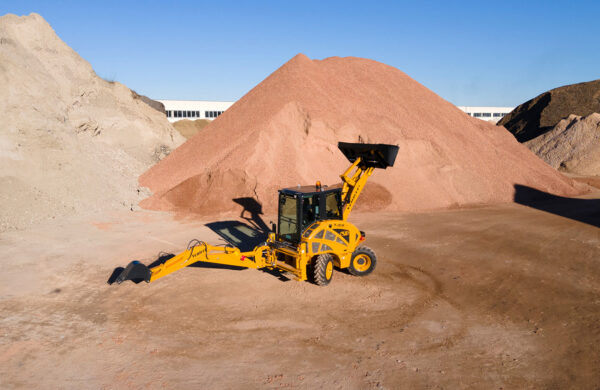

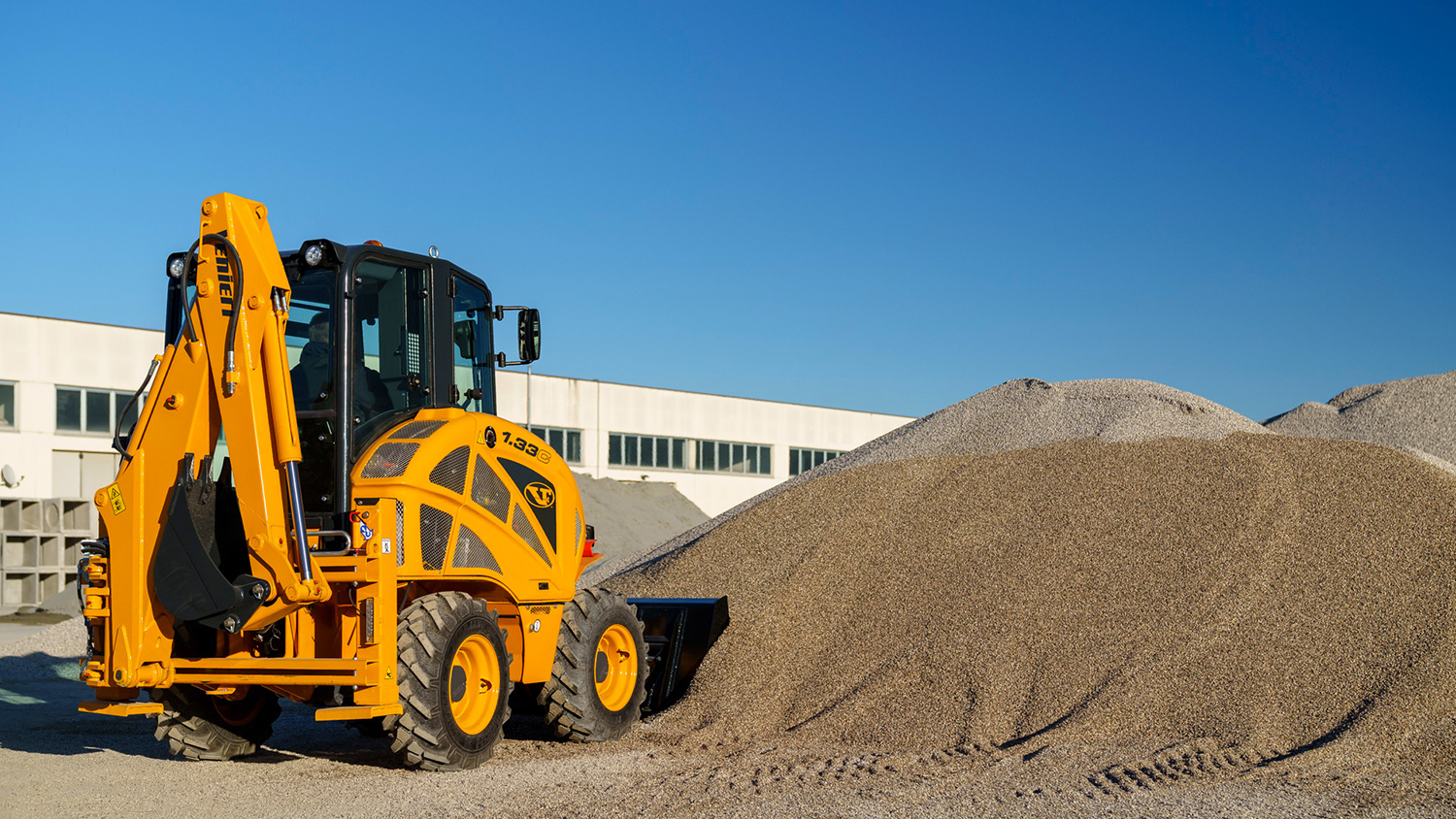

• Rear excavator arm STD
• Rear arm locking system for travelling on the road

BASIC MACHINE

• Fuel preheating (cold climates)
• Self-locking proportional differential on the rear axle
• Lever device for forward movement speed reduction
• Safety block valves on bucket cylinder
• Safety block valves on lifting cylinder
  “Venieri GLOBAL” system monitoring (Annual subscriptioin not included)
• “Crab” steering
• Water preheating system
• Biodegradable hydraulic oil
• Hydraulic oil ISO 46 (cold climates)
• Vortex prefilter

CABIN EQUIPMENT

• Canopy ROPS/FOPS I
• Seat with pneumatic suspension
• Air Conditioning
• First-aid kit
• Fire extinguisher 4.41lb
• Safety glass breaker

MAIN EQUIPMENTS

FRONT / LOADER

• Hydraulic quick coupler
• Mixing bucket
• 4-in-1 multipurpose bucket
• Hight material bucket

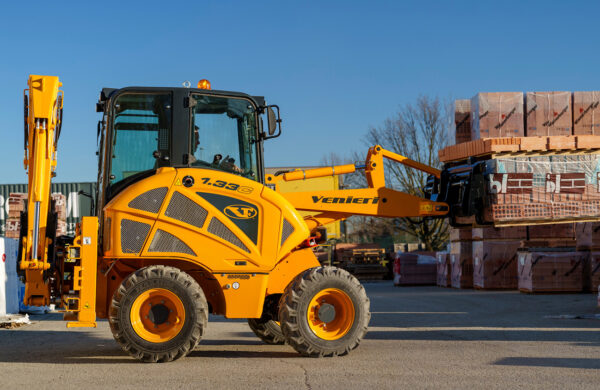

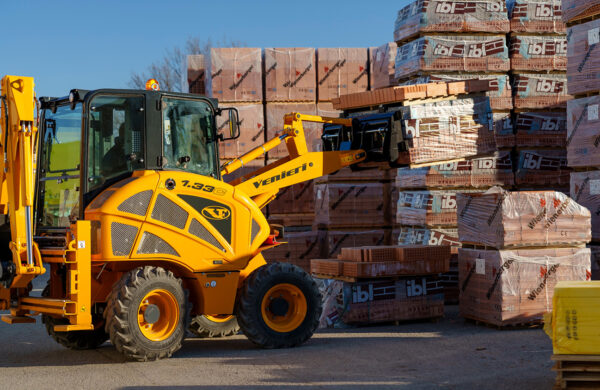

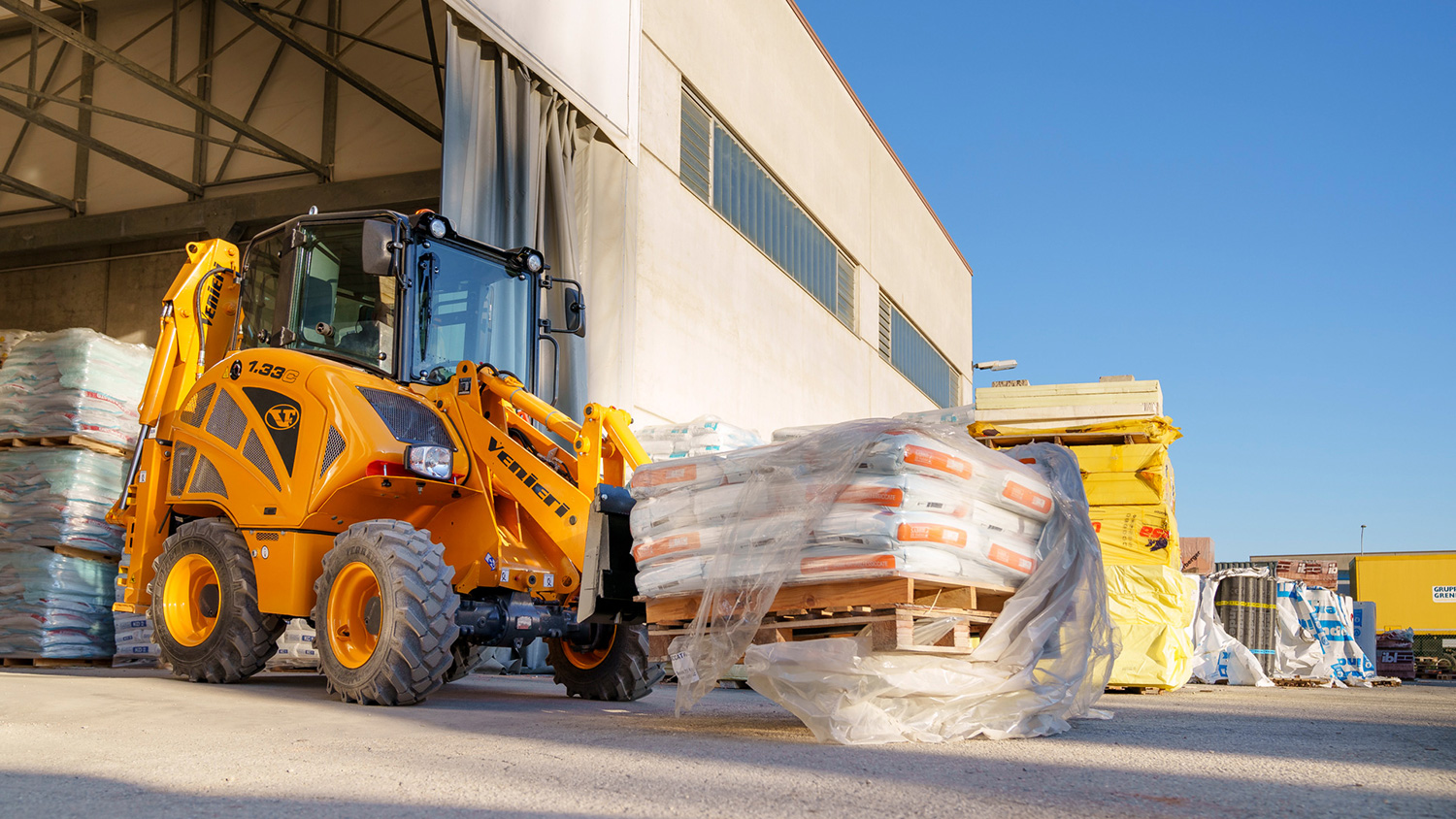

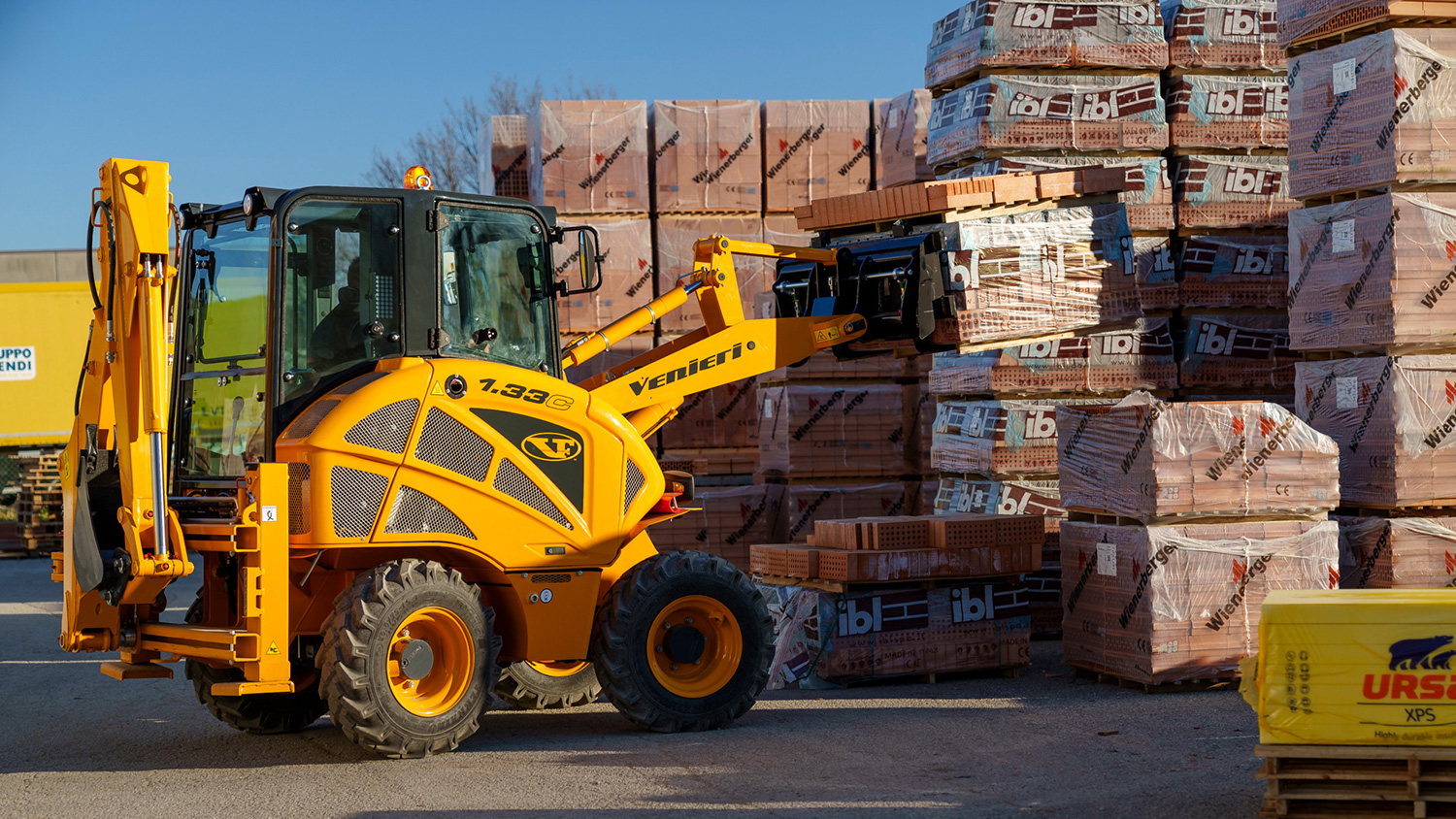

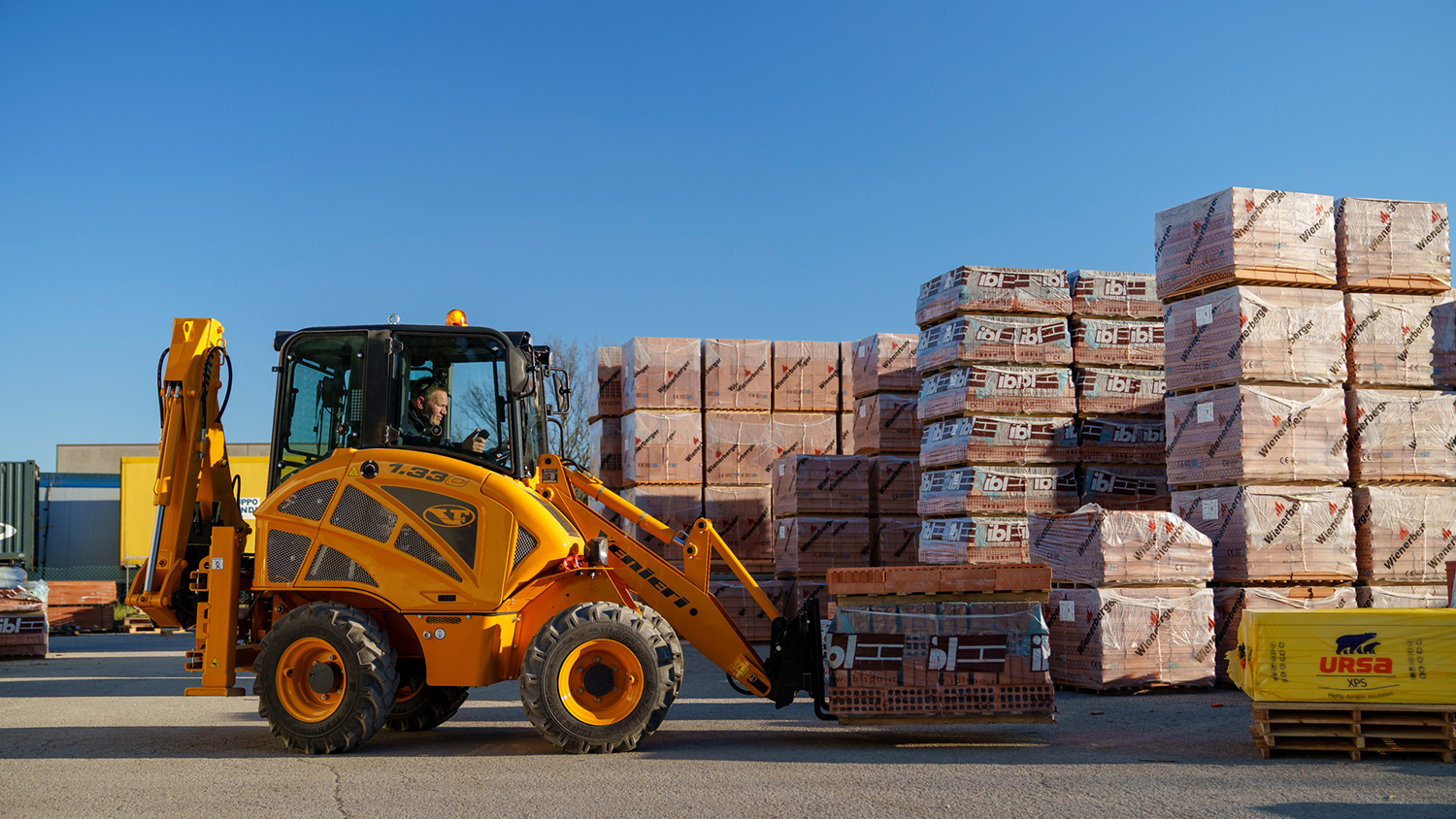

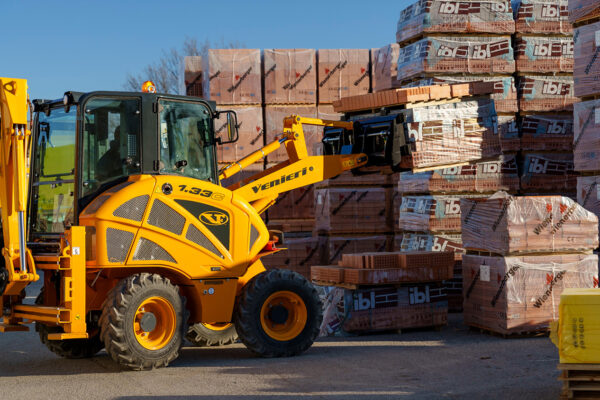

• Universal lifting forks
• Shedder
• Hydraulic brush cutter
• Asphalt / concrete planner
• Asphalt planner
• Snow blower
• Snow blade and “V” type snow blade
• Hand operating hammer
• Polishing brush
• Sweeper
• Trencher
• High-tip bucket
• High flow kit
• Unpressurized return line
• Double auxiliary line

REAR / BACKHOE LOADER

• Telescopic rear arm
• Rear excavator arm with hydraulic lateral translation

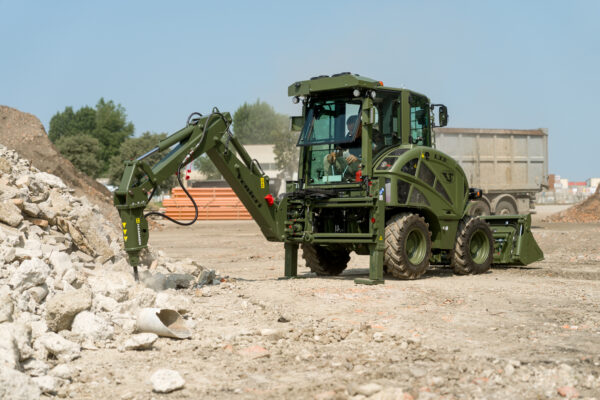

• Hydraulic Hammer
• Bidirectional hydraulic drill
