MAIN FEATURES
Linkage “Z” BAR
Engine Max Power 72 HP
Engine Emission TIER 4f
Breakout Force 12,346 lbs
Static Tipping Load, Full Turn 9,259 lbs

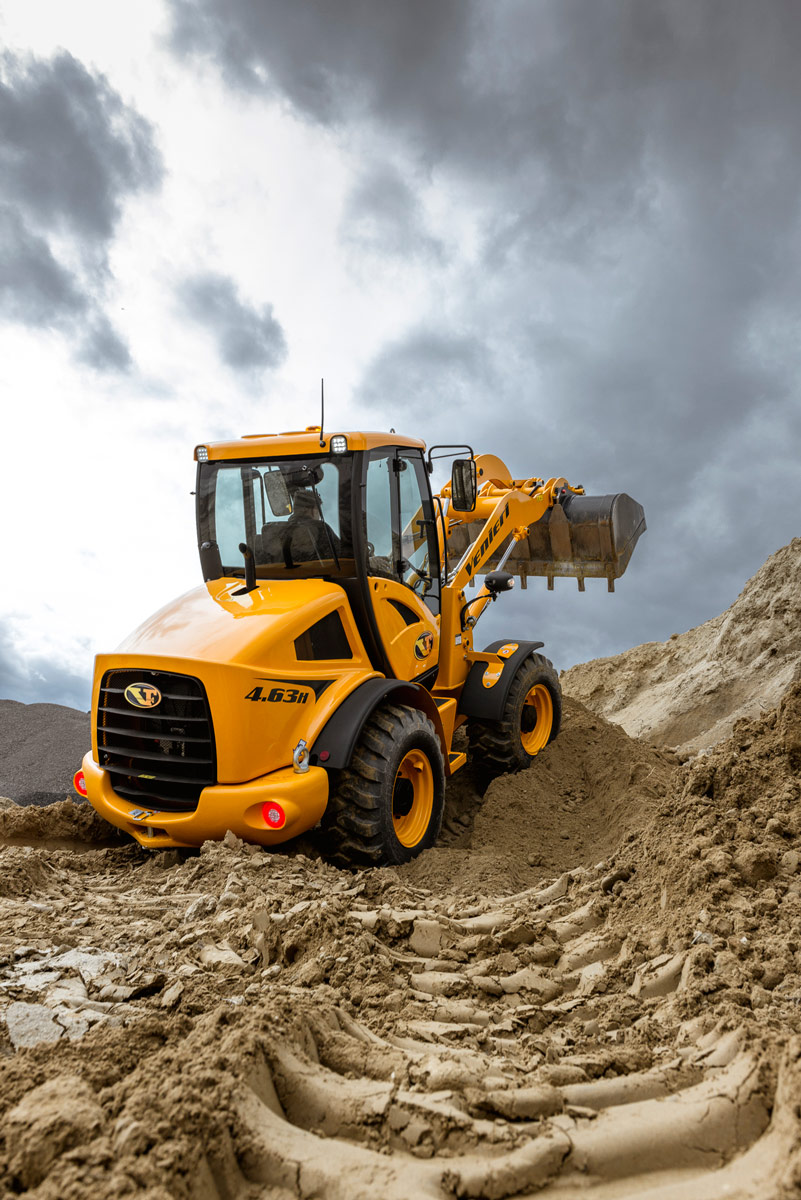

Bucket Capacity, Min/Max 1.3 – 2.0 cu/yd
Max Weight 13,669 lbs
Tyres 16/70 x 20

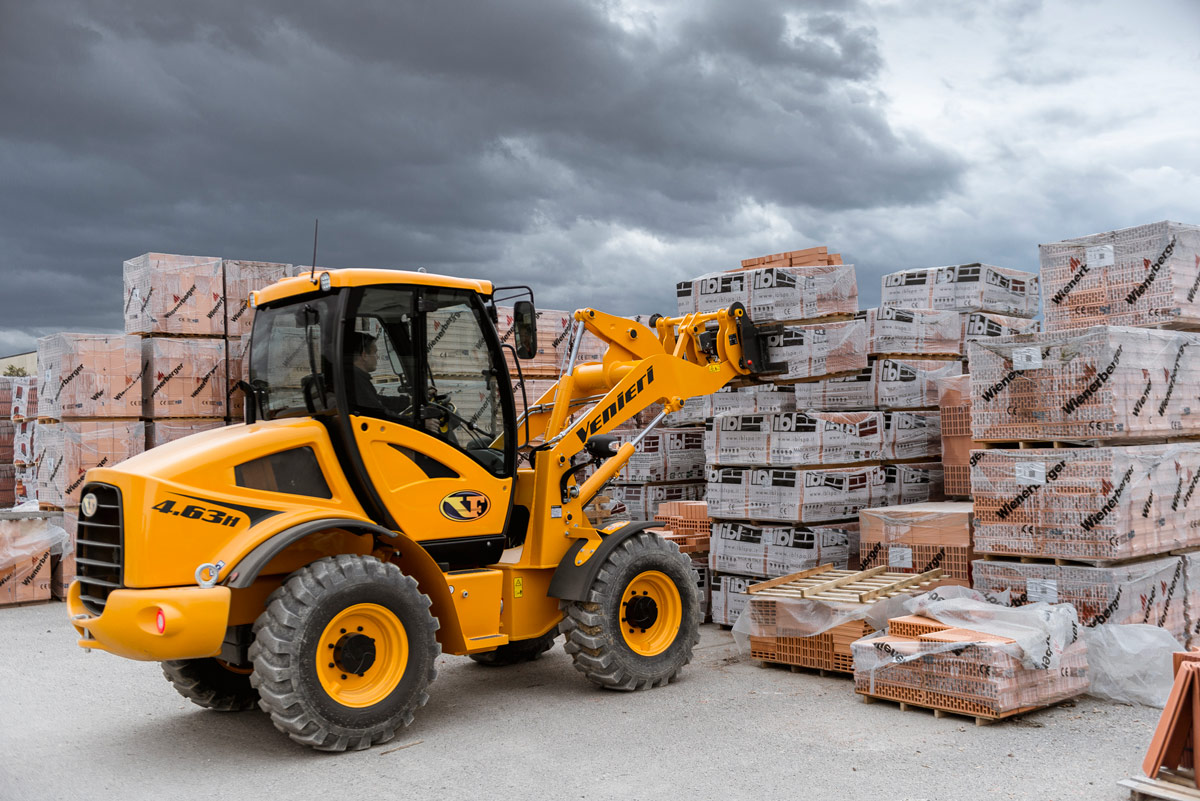

Forks Load Capacity (EN 474-3) 5,644 lbs
Max Speed 25 mph
STANDARD EQUIPMENT
BASIC MACHINE
- Battery main switch
- Tool box
- Plugs with keys for fuel and hydraulic tanks
- Proportional self lock front differential
- Trailer coupling
- Warning beacon
- Soundproofing
- Spare parts calatogue
- User manual
- Type-approval for road traffic
- Safety clamp for bucket and lifting cylinders
- Autolevelling ground level for bucket
- Double-speed hydraulic fan
- Greasing points grouped on the frame
CABIN EQUIPMENT
- ROPS/FOPS 2nd Level, pressurized and soundproofed
- Front and rear windscreen wiper with washer
- Halogen work lights (4 front + 2 rear)
- Mobile phone compartment
- Bottle holder
- Document compartment
- Seat with mechanical suspension
- Seat armrests
- Buzzer
- Cabin carpet
- Clothes hangers
- Radio preparation
- Supplementary socket 12V
- Ceiling lamp
- Sun visor
- Rear view mirrors
- Seat belt
- Instrumentation and dashboard with LCD display
- Safety glass breaker
OPTIONAL EQUIPMENT
BASIC MACHINE
- Fuel preheating (cold climates)
- Proportional self lock rear differential
- Differential lock 100% engageable in front axle
- Speed reduction kit
- “Venieri GLOBAL” system
- Reversible fan (for radiator cleaning)
- Hydraulic negative parking brake
- Service brake on both axles with separate circuits
- Inch pedal integrated in brake peda
- Automatic centralized greasing system
- Ride control
- Engine preheating system
- Enviromentally-friendly hydraulic oil
- Hydraulic oil ISO 46 (cold climates)
- Cyclone dust separator
- High speed Kit
CABIN EQUIPMENT
- LED work lights (4 front + 2 rear)
- Seat with pneumatic suspension
- Seat with pneumatic suspension and heating
- Manual Air Conditioning
- “Climatronic Venieri” system
- Heatable rear view mirrors
- First-aid kit
- Fire extinguisher 4.41 lbs
SPECIAL EQUIPMENT
- Hydraulic or mechanical quick coupler
- Cement mixing bucket
- Multipurpose bucket (4 in 1)
- Lifting forks
- Asphalt and cement planer

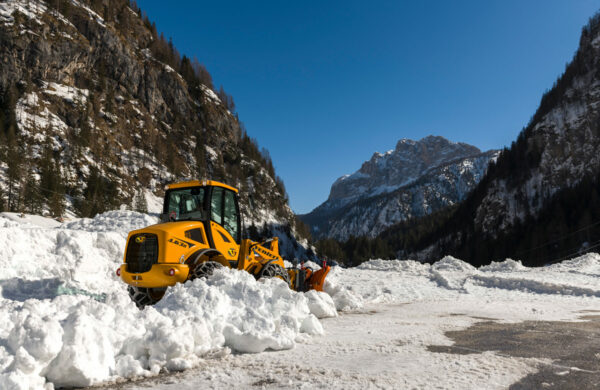

- Snow blower

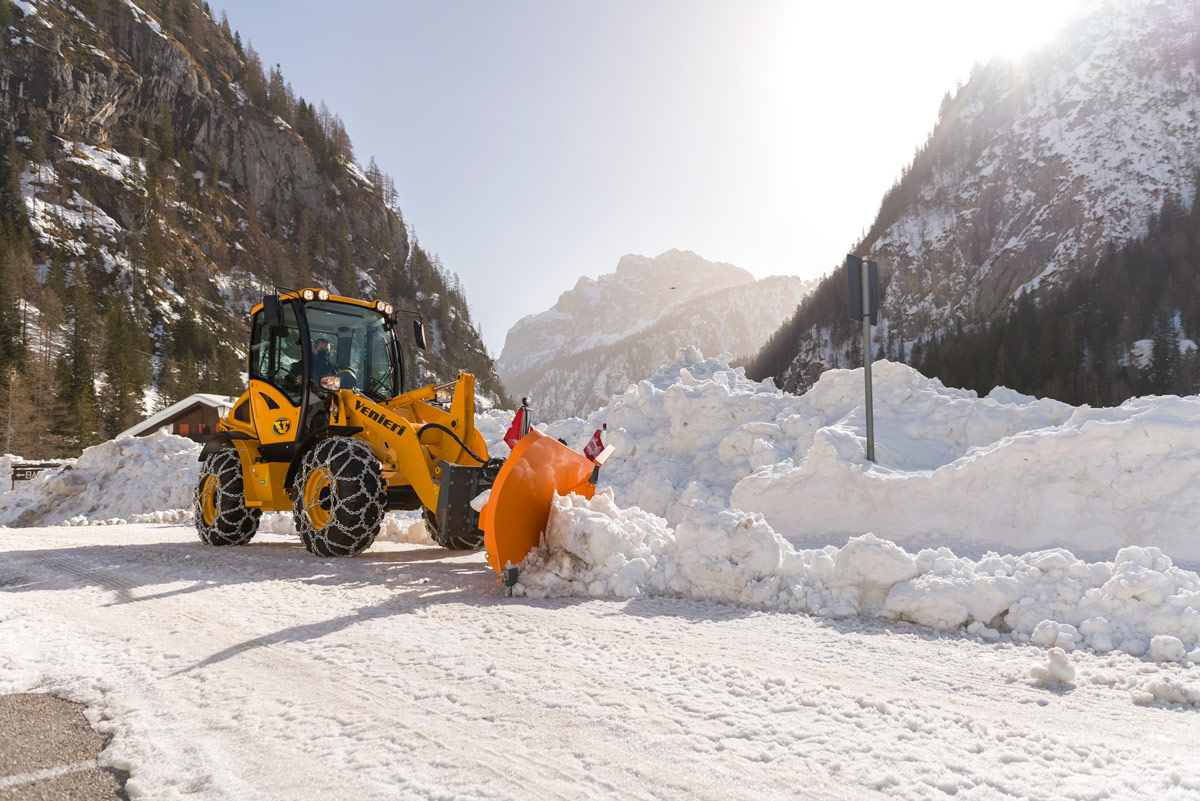

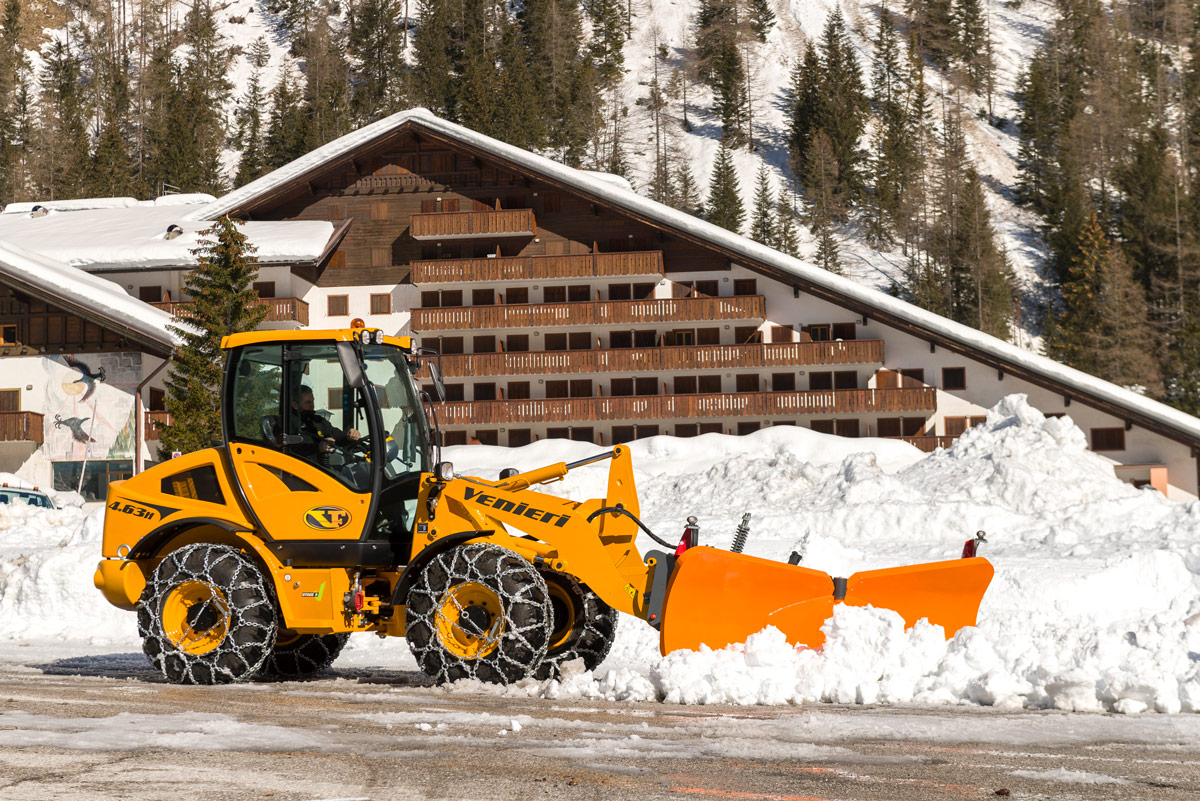

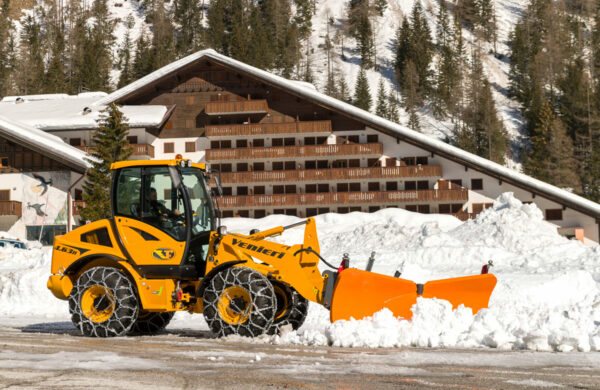

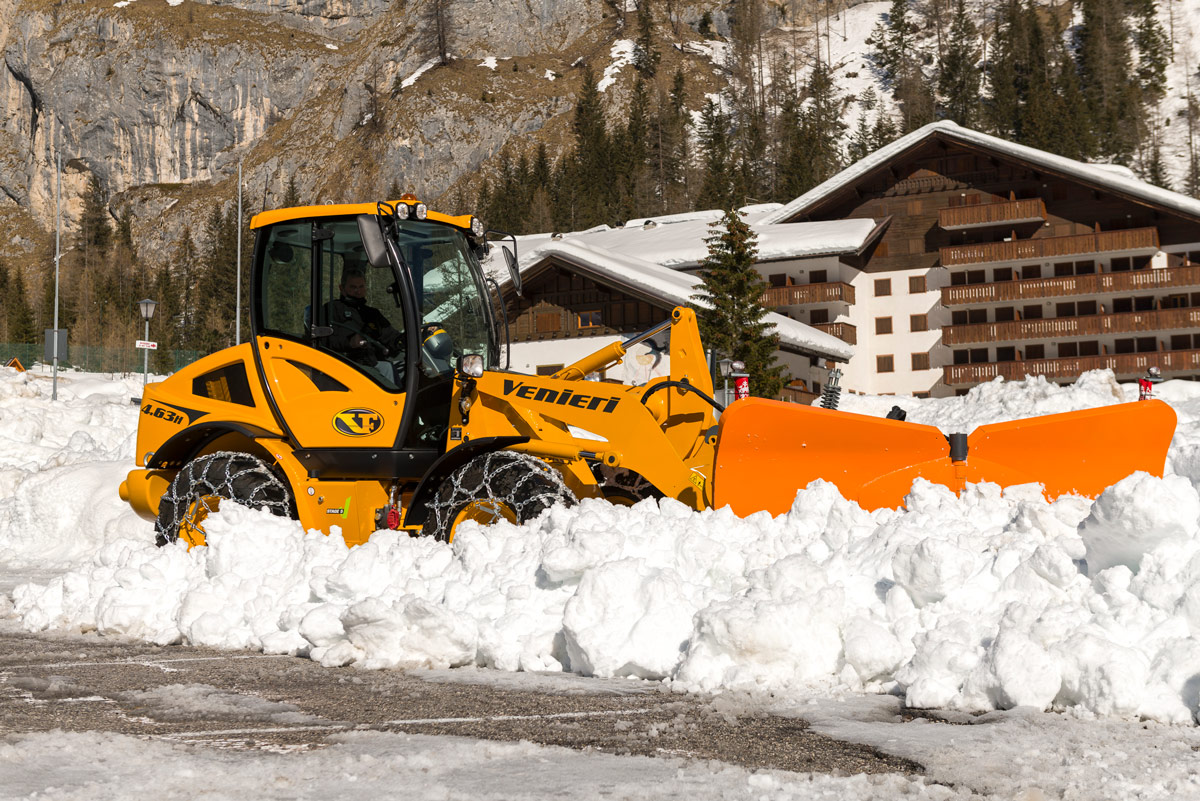

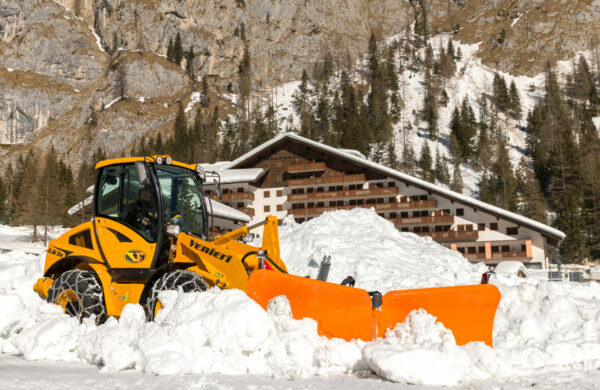

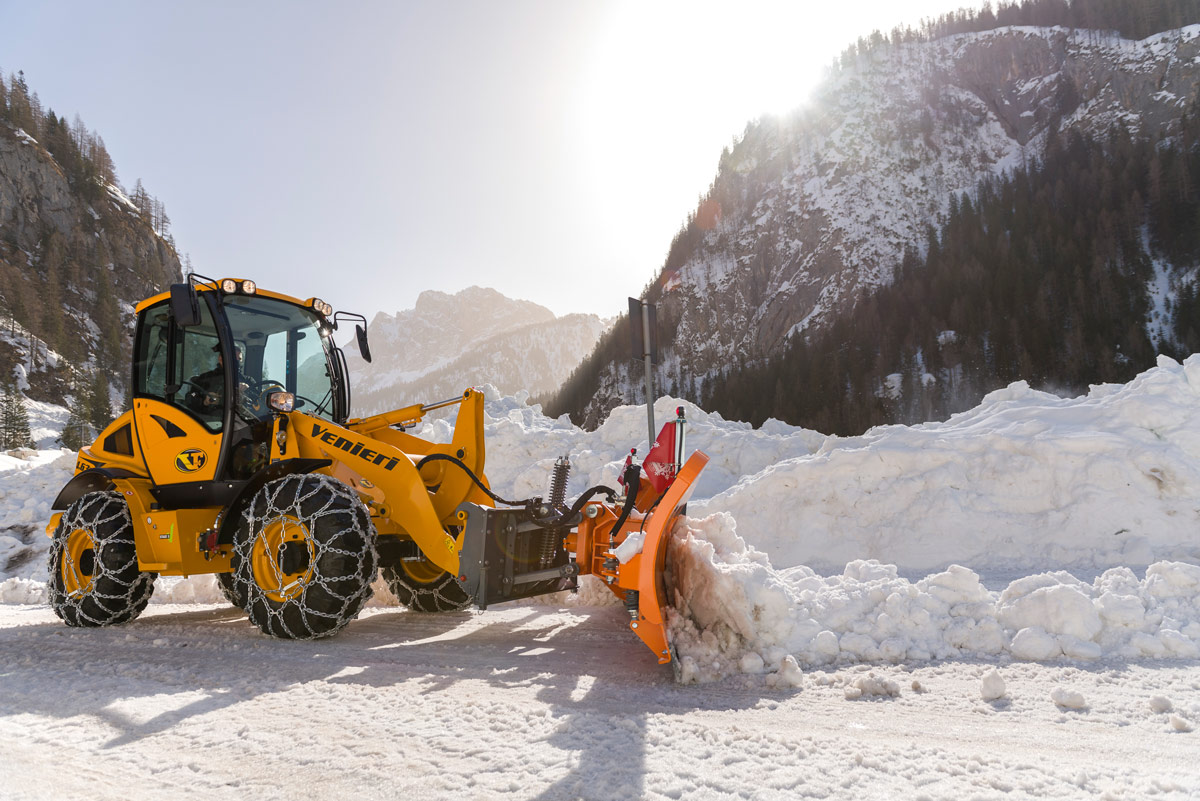

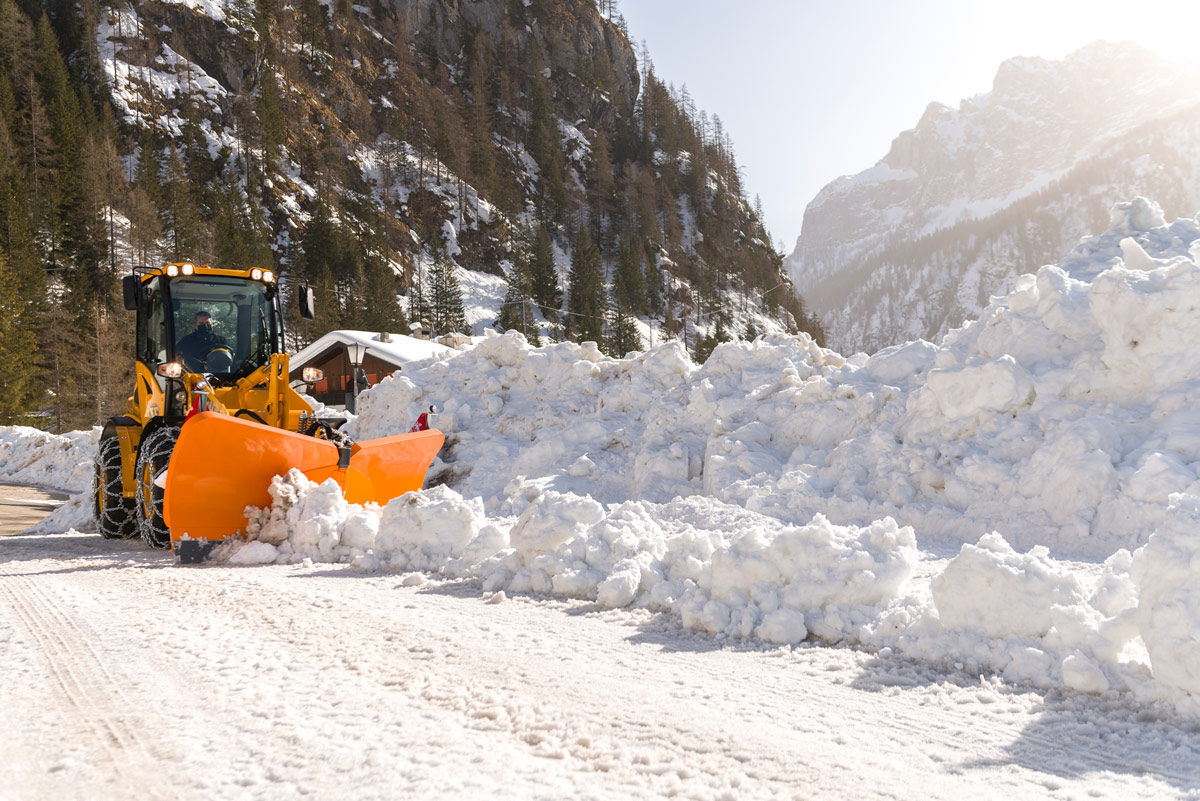

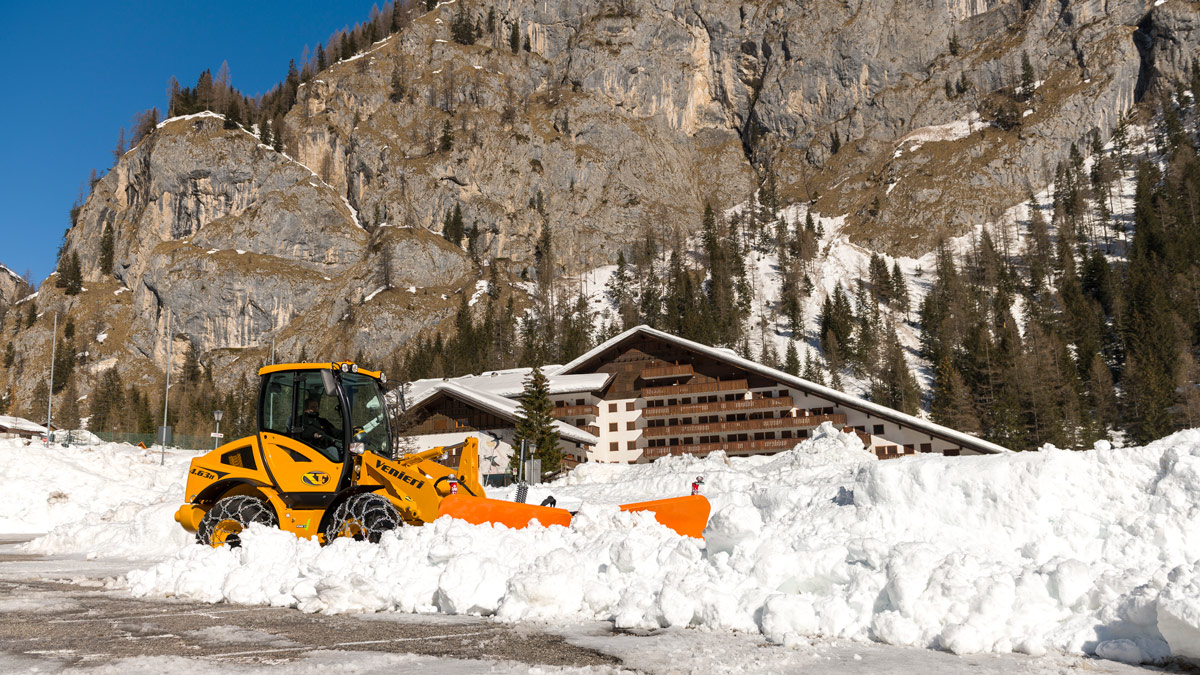

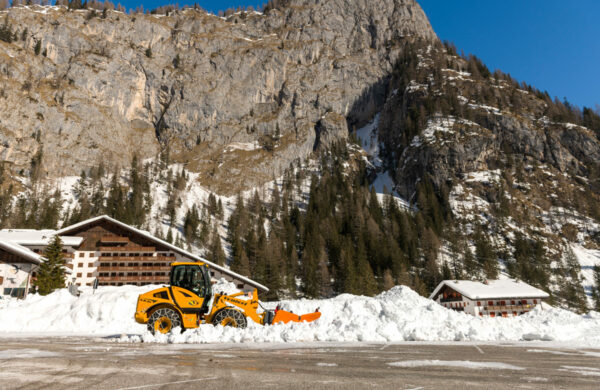

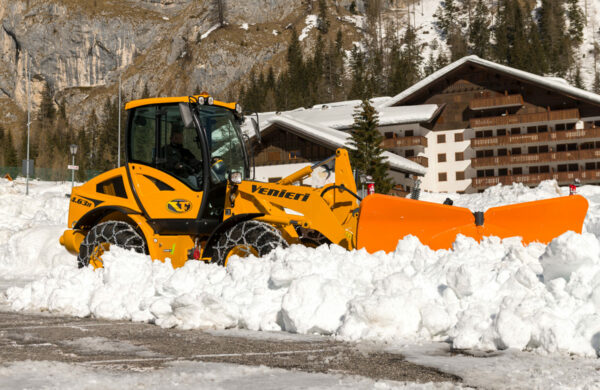

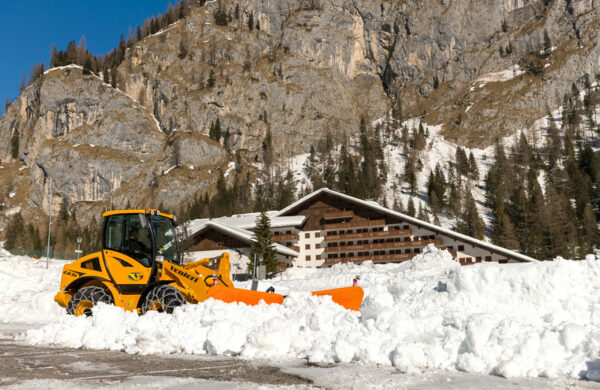

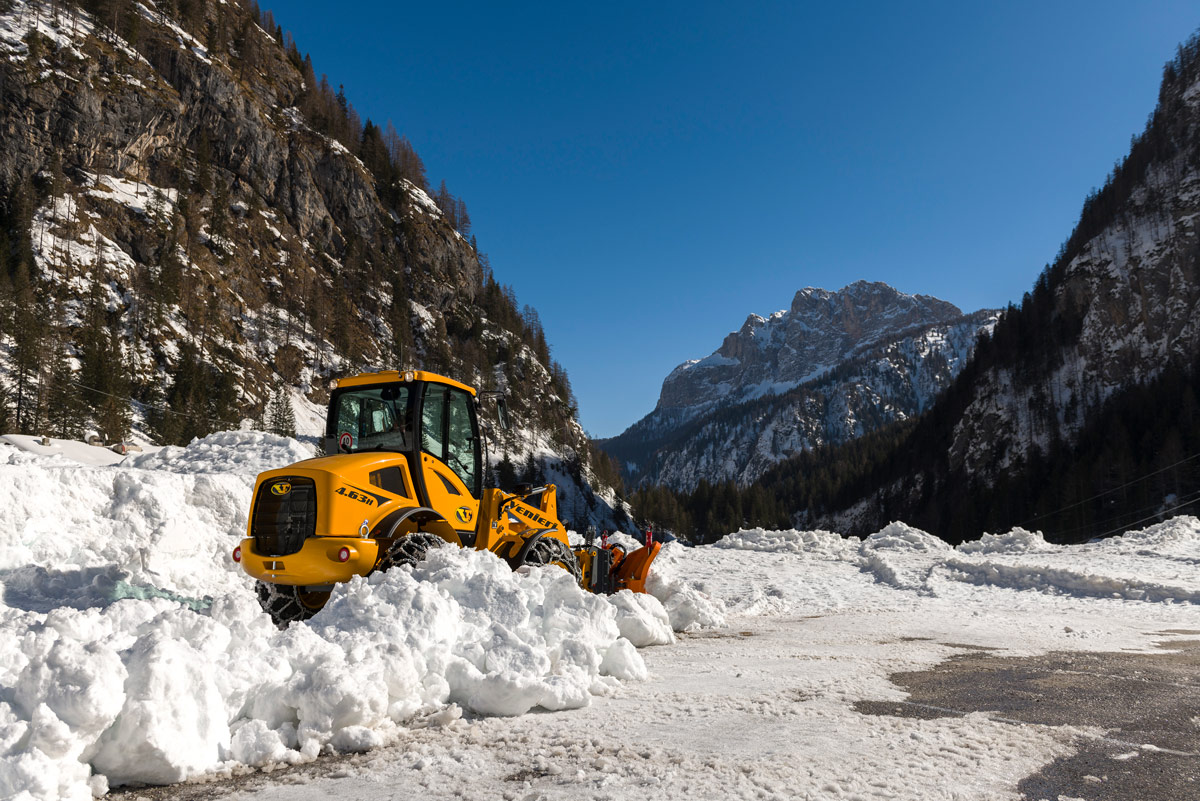

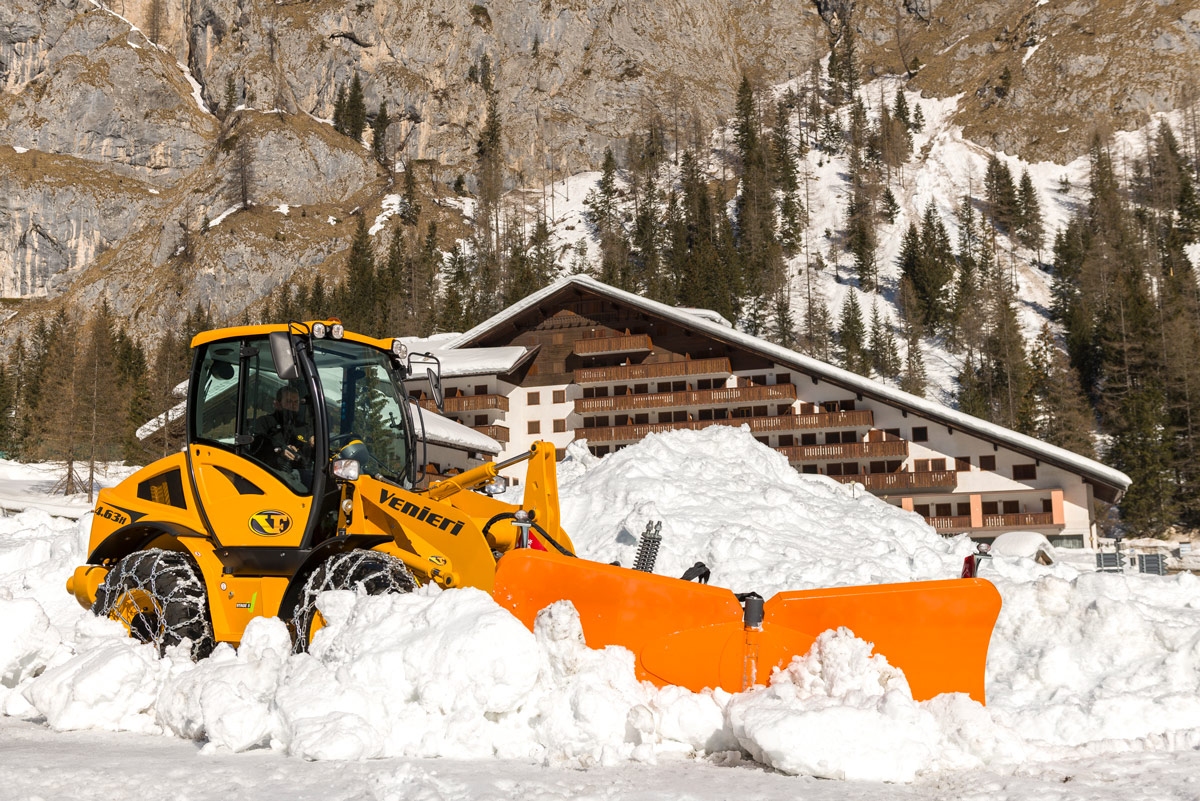

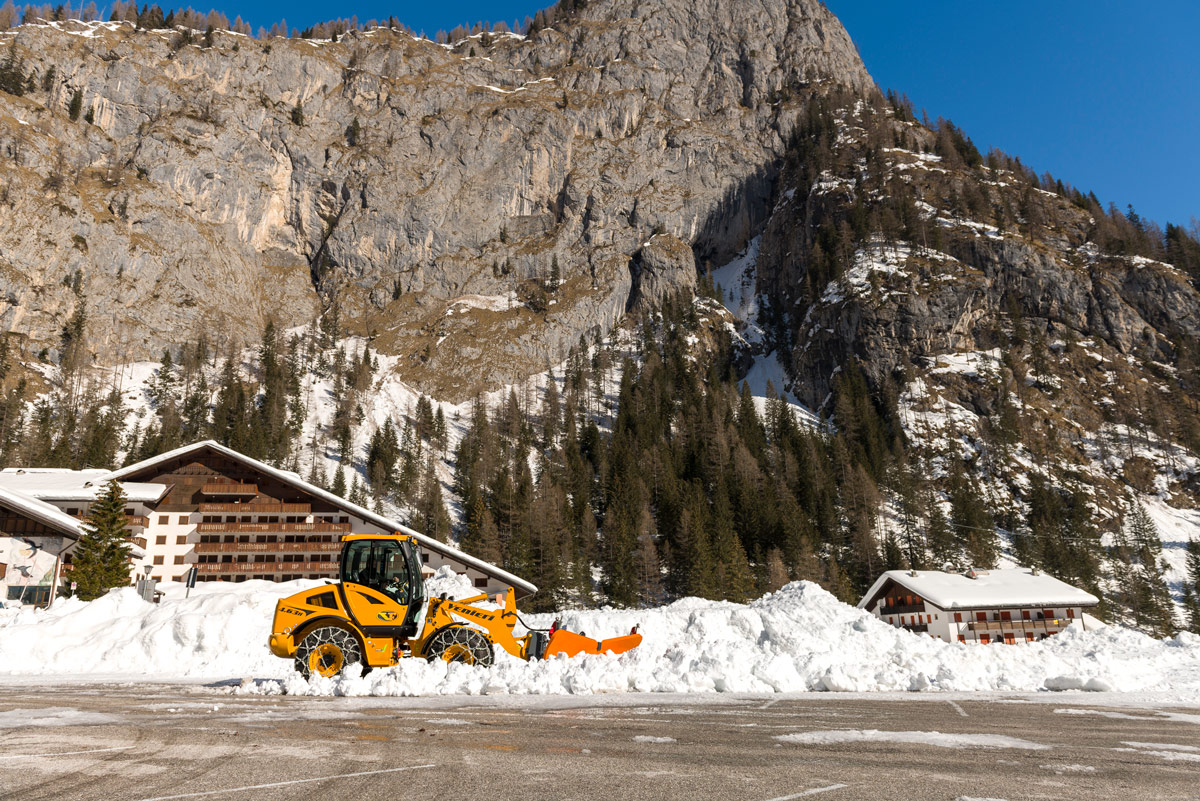

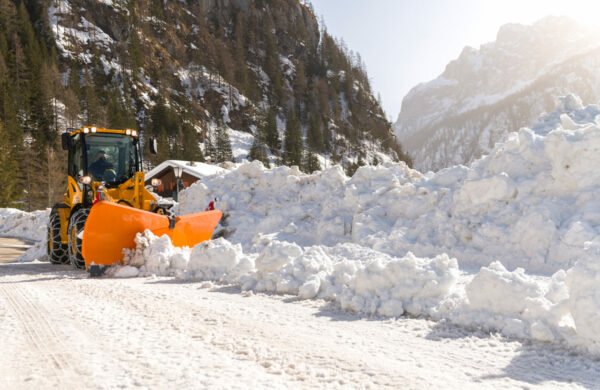

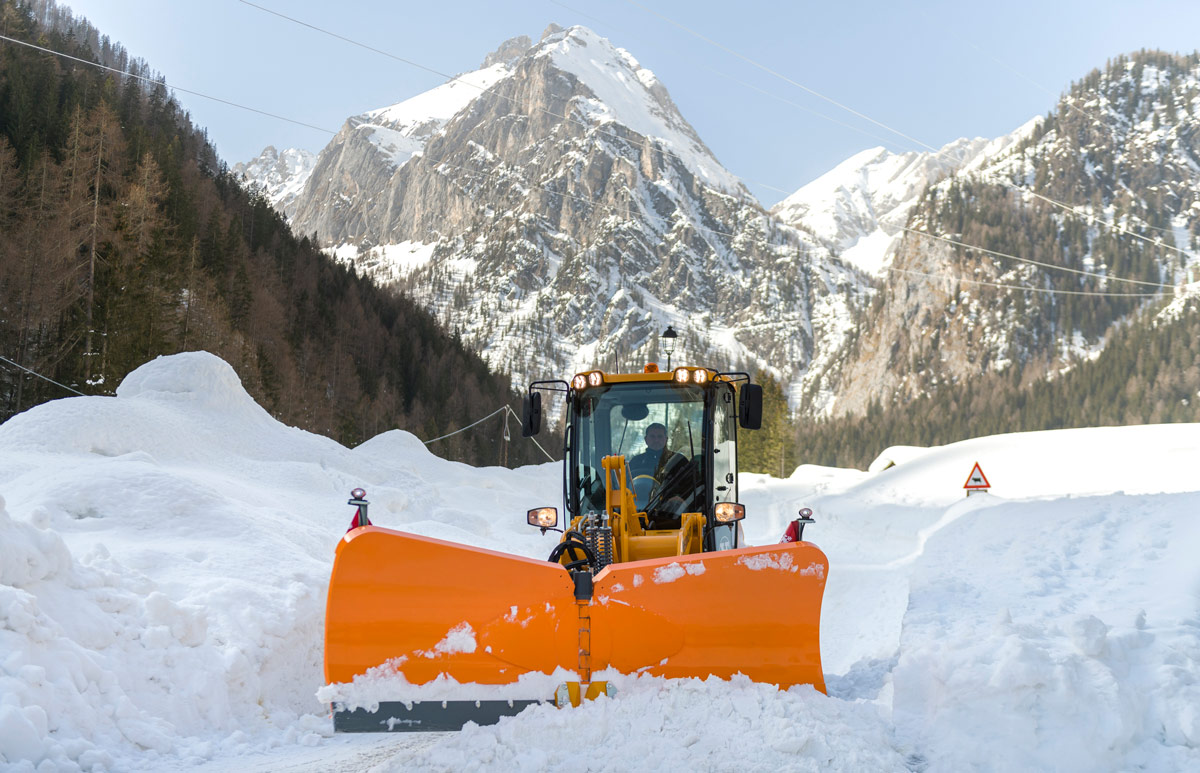

- Snow blade and “V” type snow blade
- Angle-tilt dozer blade
- Hand operating hammer
- Polishing brush
- Trencher
- High tip bucket
- High flow kit
- Unpressurized return pipe
- Double auxiliary line
- Rear hydraulic line (single effect)

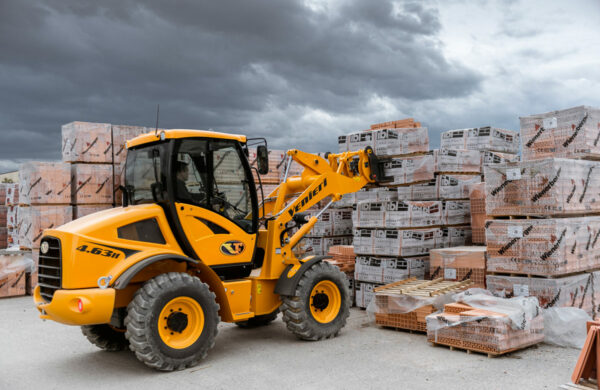

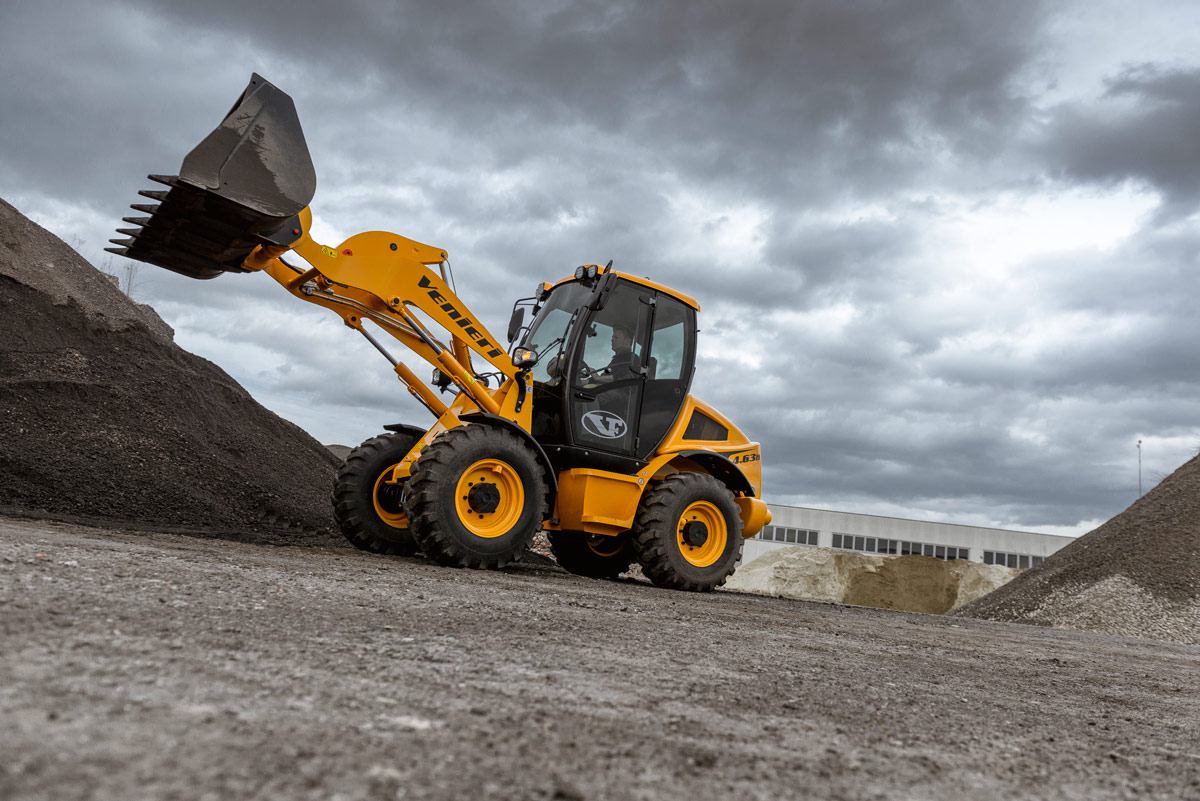

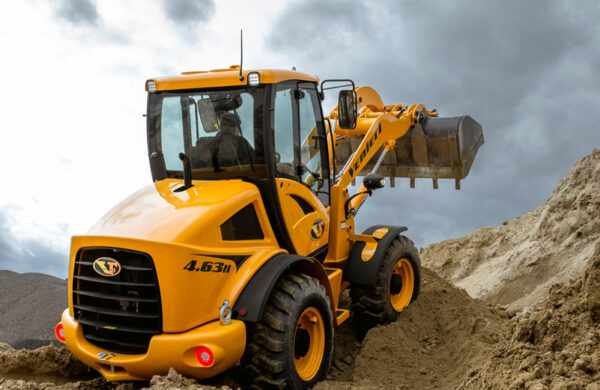

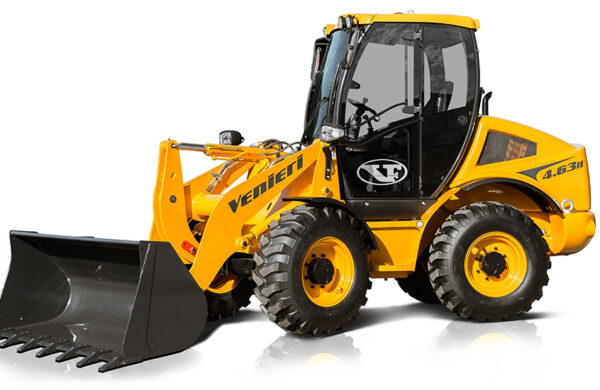

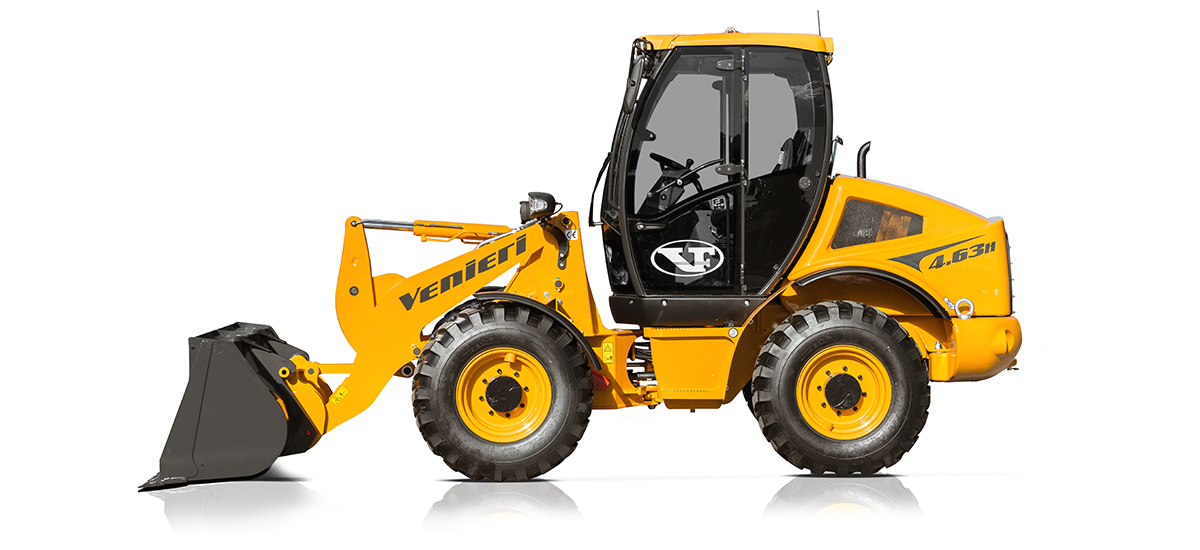

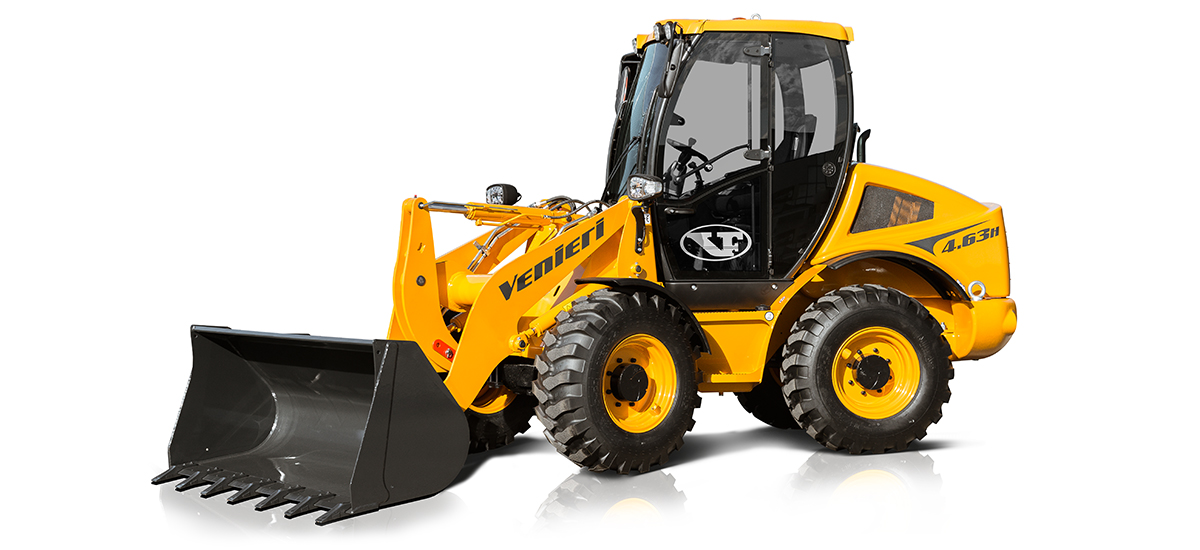

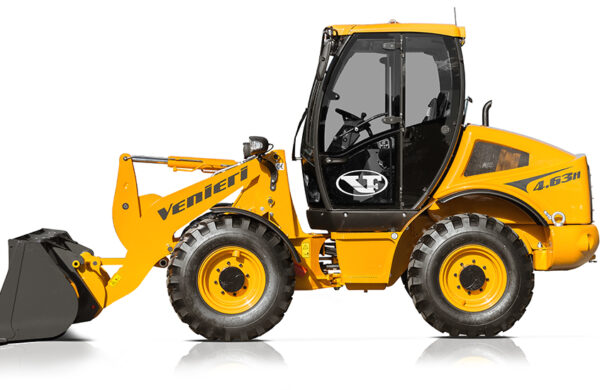

4.63H
