Linkage “Z” BAR
Engine Max Power 79 HP
Engine Emission TIER 4f – NO DPF – NO AdBlue Needed
Breakout Force 14,110 lbs
Static Tipping Load, Full Turn 9,700 lbs
Bucket Capacity, Min/Max 1.4 – 2.0 cu/yd
Max Weight 13,823 lbs
Tyres 450/70 R20
Forks Load Capacity (EN 474-3) 5,997 lbs
Max Speed 25 mph

BASIC MACHINE

• Battery main switch
• Tool box
• Plugs with keys for fuel and hydraulic tanks
• Proportional self lock front differential
• Trailer coupling
• Warning beacon
• Soundproofing
• Spare parts calatogue
• User manual
• Type-approval for road traffic
• Safety clamp for bucket and lifting cylinders
• Autolevelling ground level for bucket
• Double-speed hydraulic fan
• Greasing points grouped on the frame
• Cyclone dust separator

CABIN EQUIPMENT

• ROPS/FOPS 2nd Level, pressurized and soundproofed
• Front and rear windscreen wiper with washer
• Halogen work lights (4 front + 2 rear)
• Mobile phone compartment
• Bottle holder
• Document compartment
• Seat with mechanical suspension
• Seat armrests
• Buzzer
• Cabin carpet
• Clothes hangers
• Radio preparation
• Supplementary socket 12V
• Ceiling lamp
• Sun visor
• Rear view mirrors
• Seat belt
• Instrumentation and dashboard with LCD display
• Safety glass breaker

BASIC MACHINE

• Fuel preheating (cold climates)
• Proportional self lock rear differential
• Differential lock 100% engageable in front axle
• Speed reduction kit
• “Venieri GLOBAL” system
• Reversible fan (for radiator cleaning)
• Hydraulic negative parking brake
• Service brake on both axles with separate circuits
• Inch pedal integrated in brake peda
• Automatic centralized greasing system
• Ride control
• Engine preheating system
• Enviromentally-friendly hydraulic oil
• Hydraulic oil ISO 46 (cold climates)

CABIN EQUIPMENT

• LED work lights (4 front + 2 rear)
• Seat with pneumatic suspension
• Seat with pneumatic suspension and heating
• Manual Air Conditioning
• “Climatronic Venieri” system
• Heatable rear view mirrors
• First-aid kit
• Fire extinguisher 4.41 lbs

SPECIAL EQUIPMENT

• Hydraulic or mechanical quick coupler
• Cement mixing bucket
• Multipurpose bucket (4 in 1)
• Lifting forks

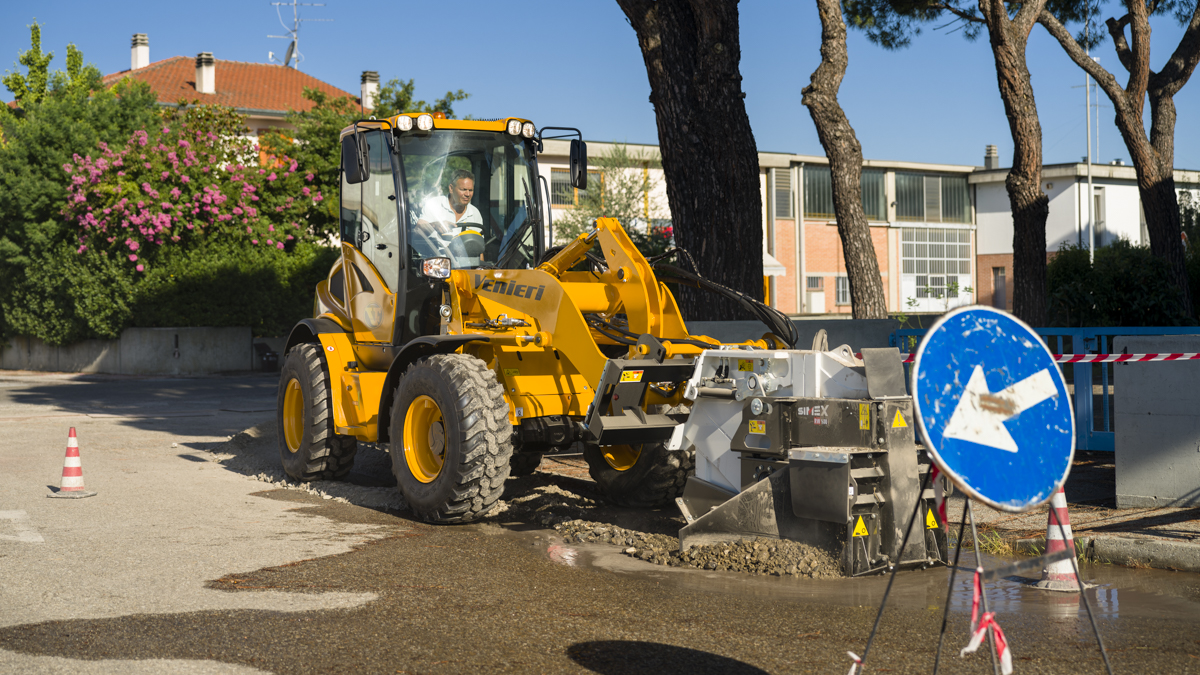

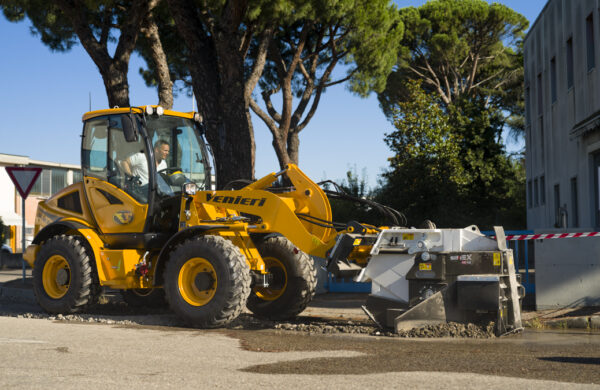

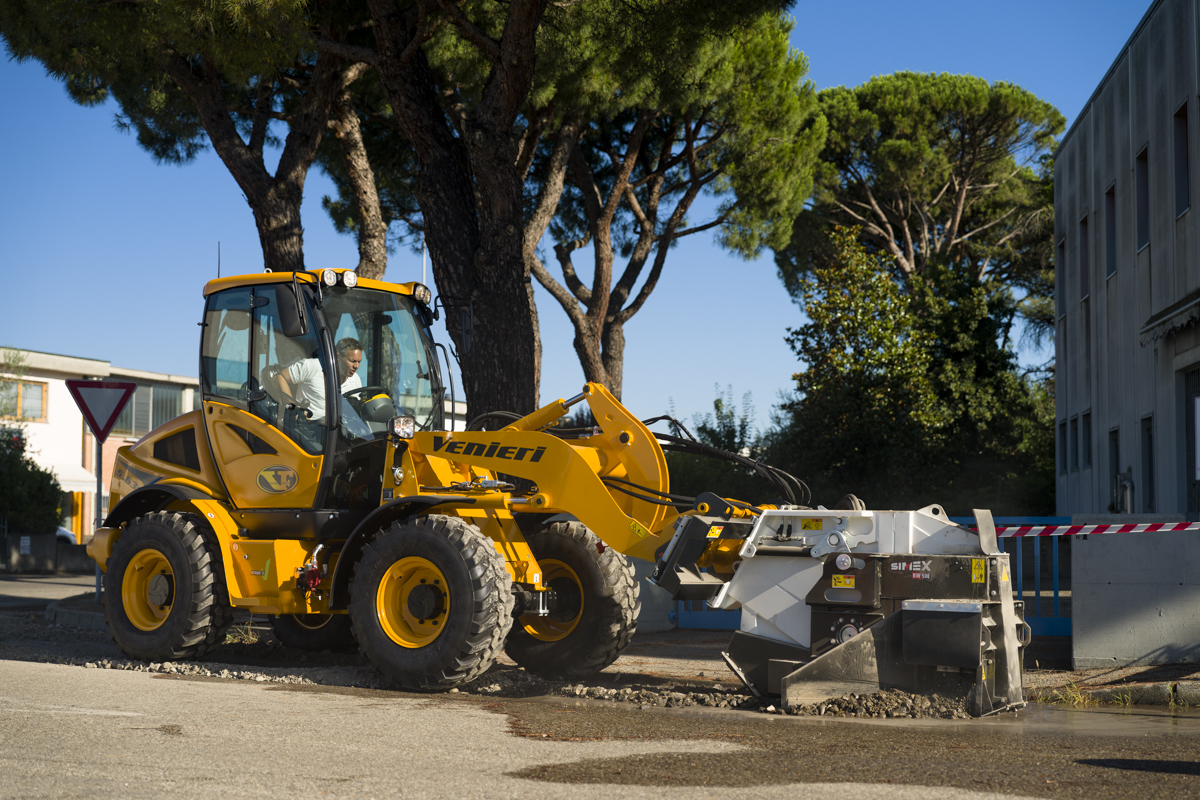

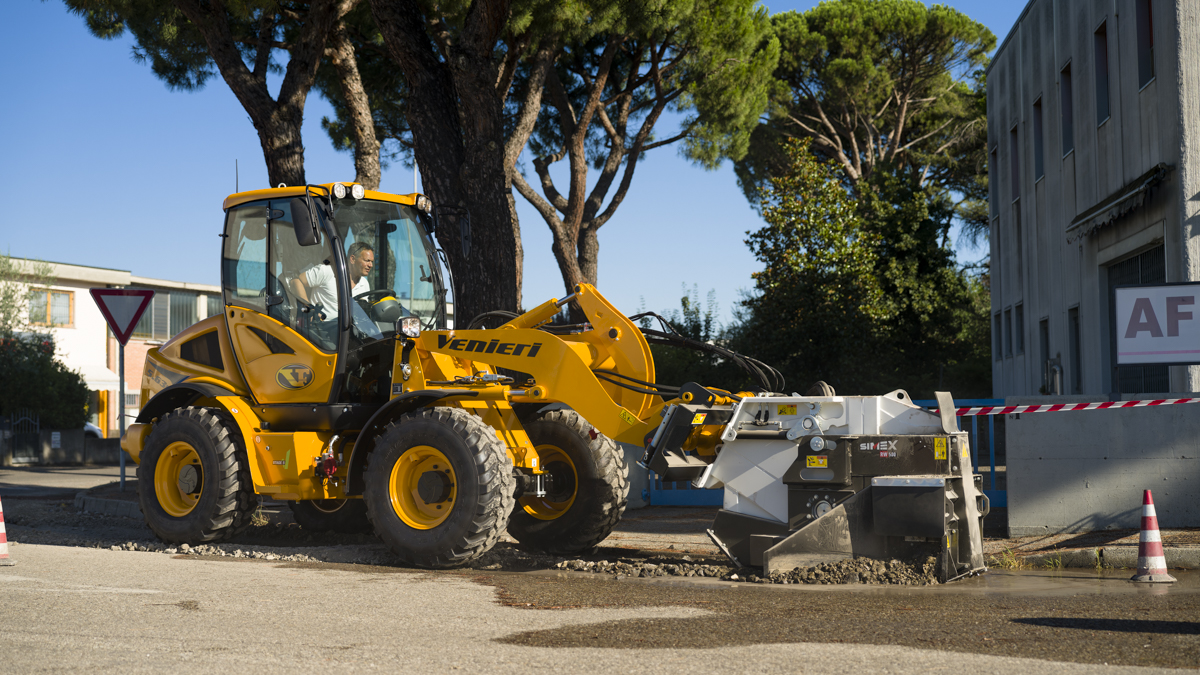

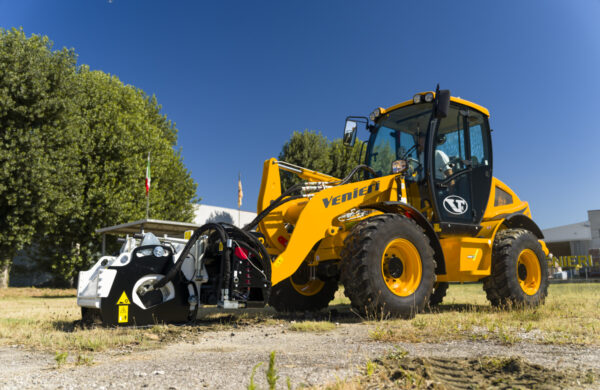

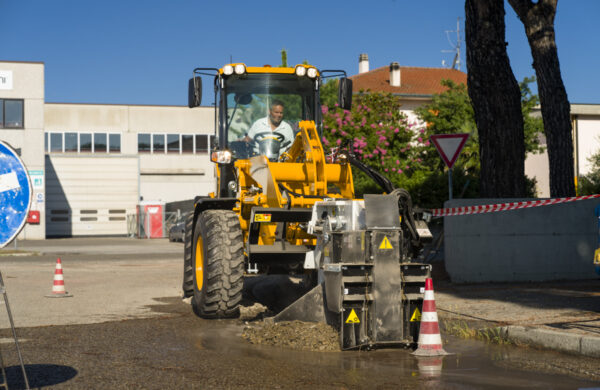

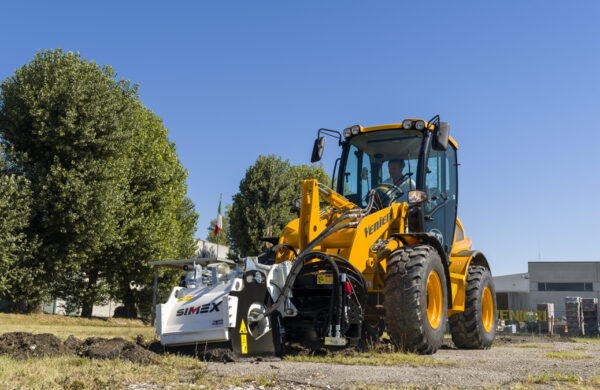

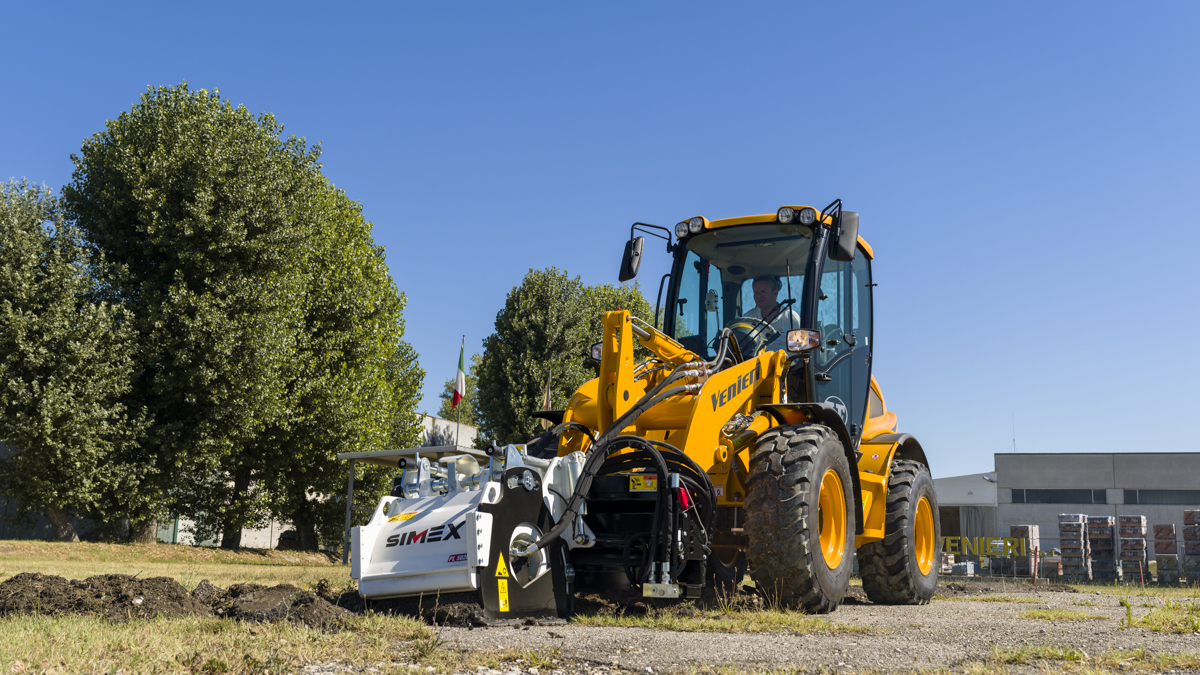

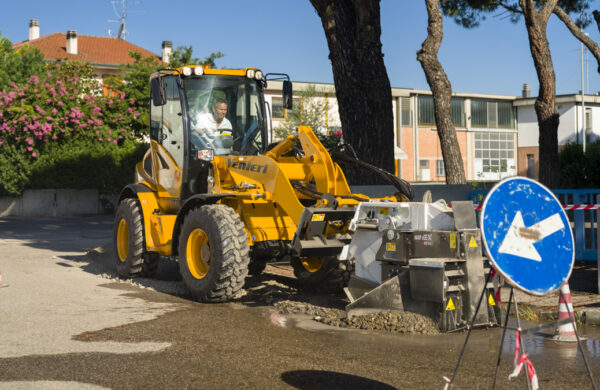

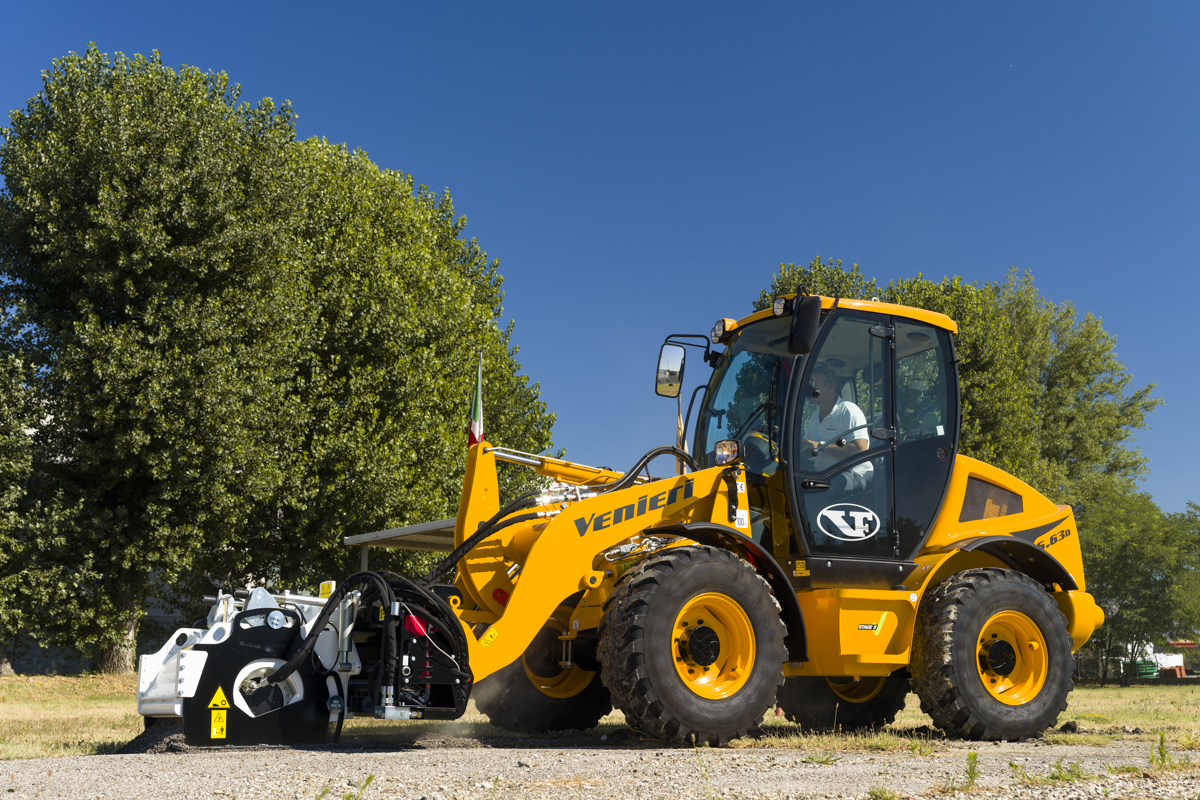

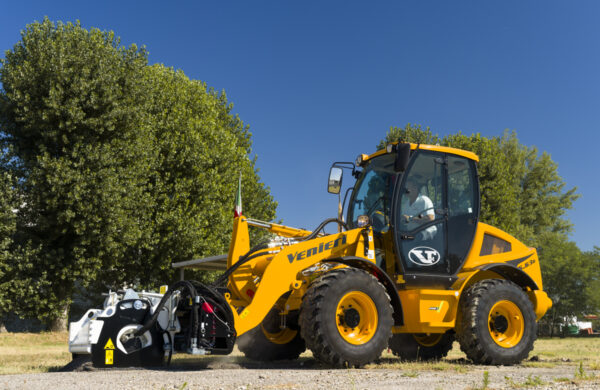

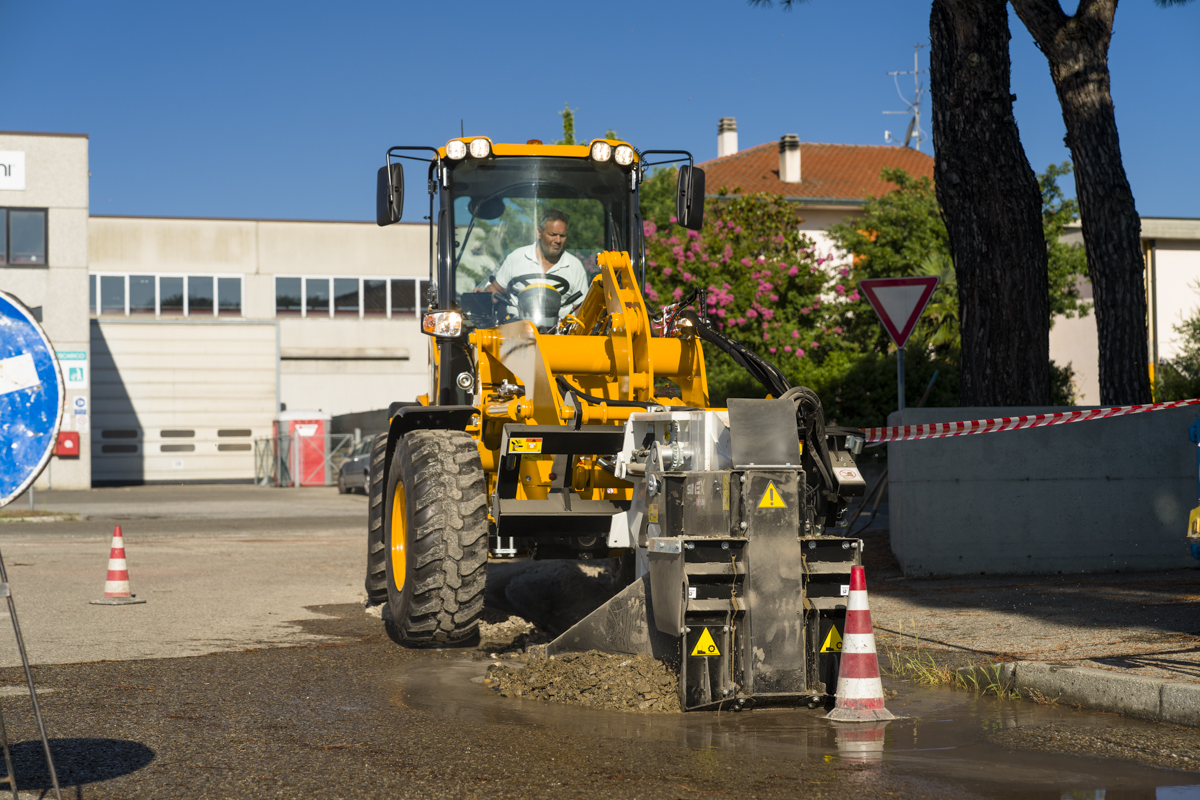

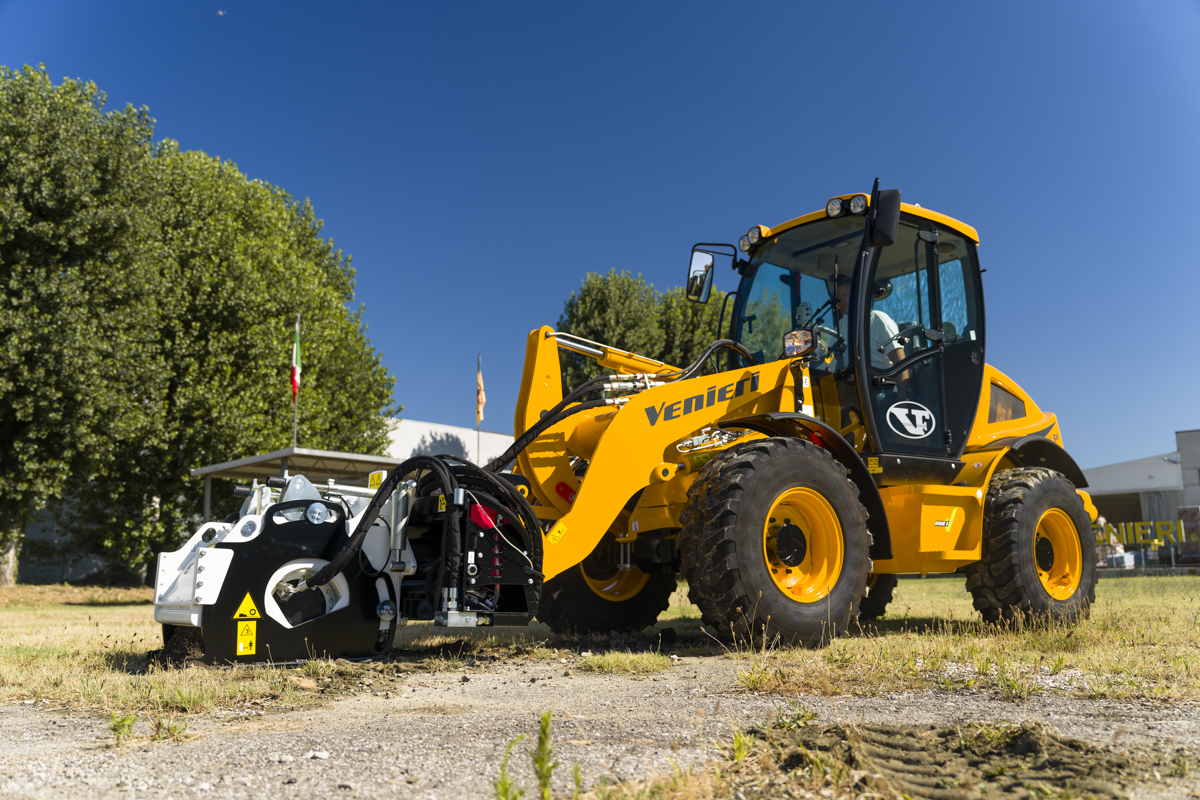

• Asphalt and cement planer
• Snow blower
• Snow blade and “V” type snow blade
• Angle-tilt dozer blade
• Hand operating hammer

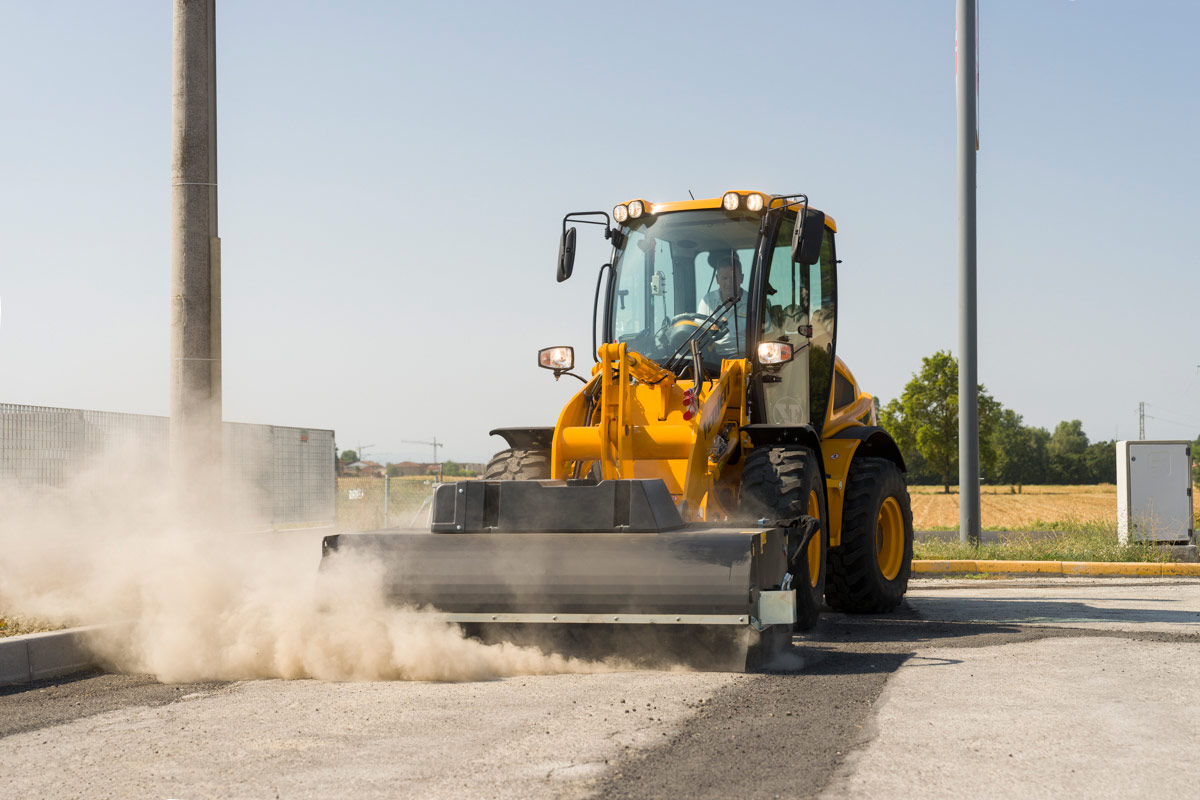

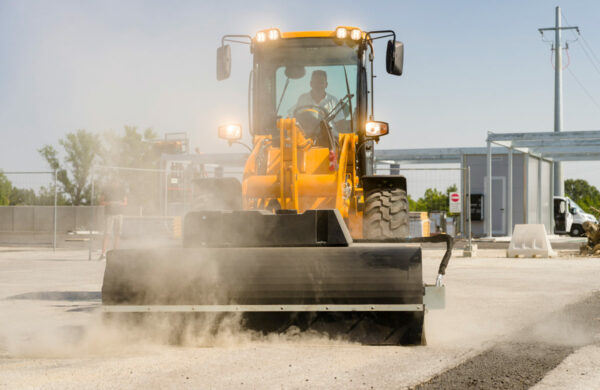

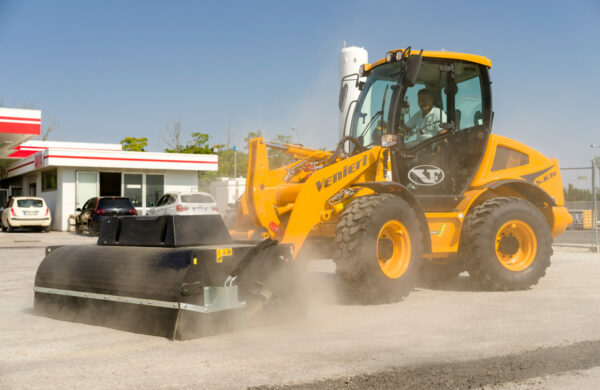

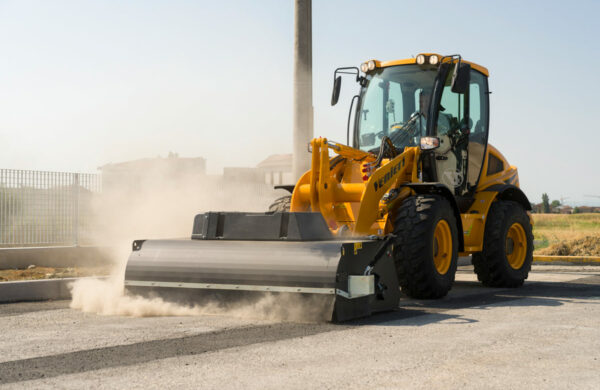

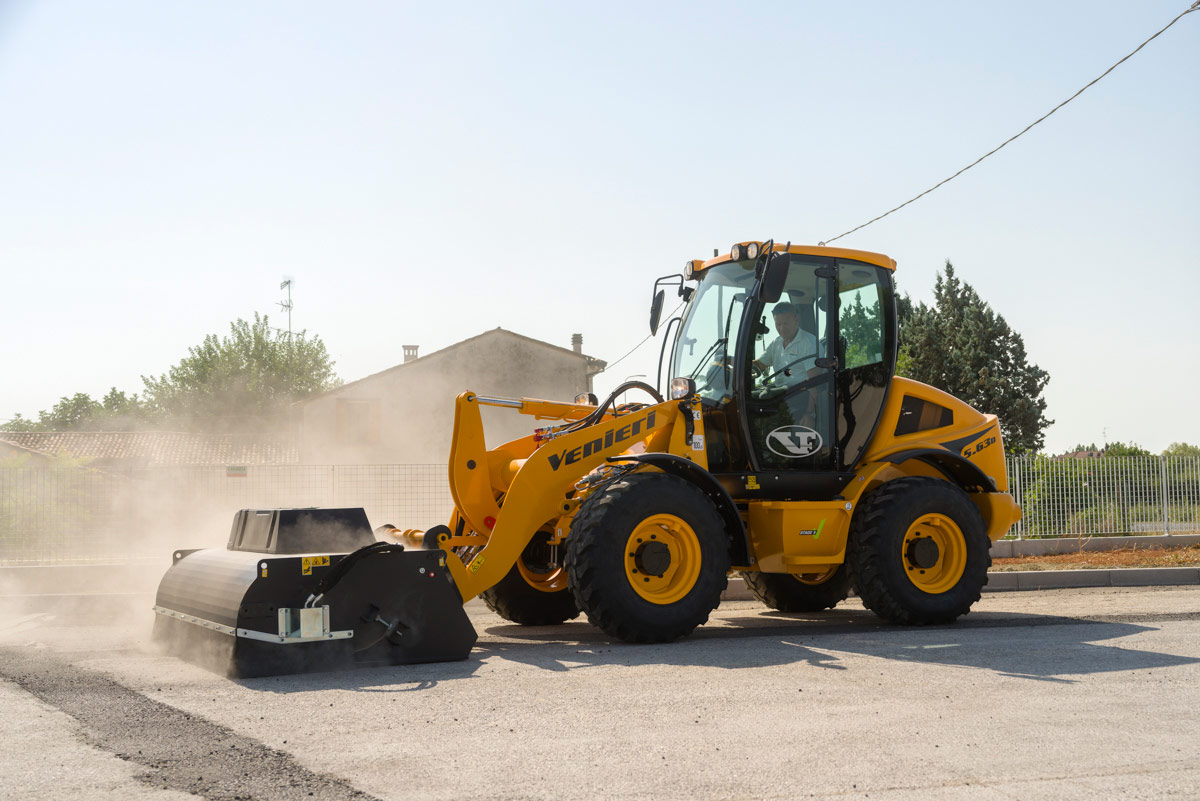

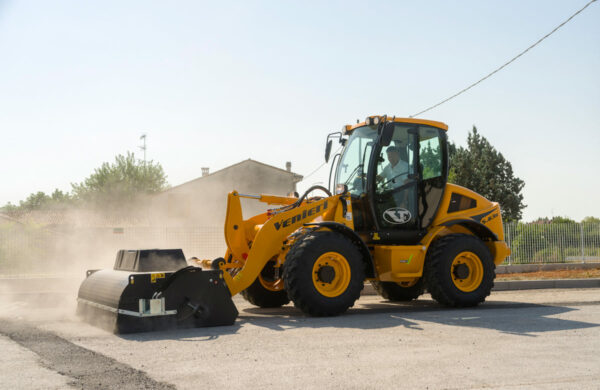

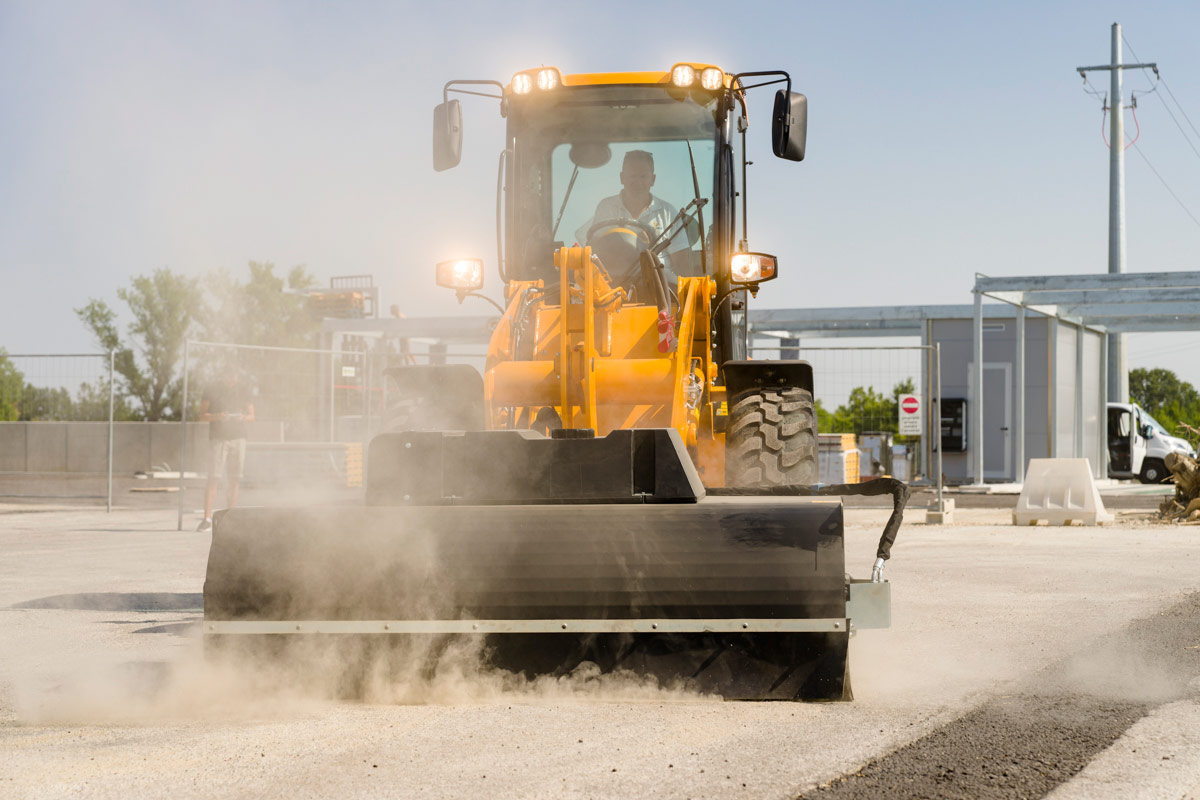

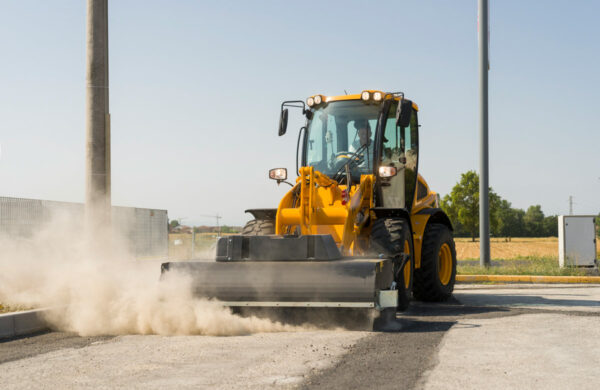

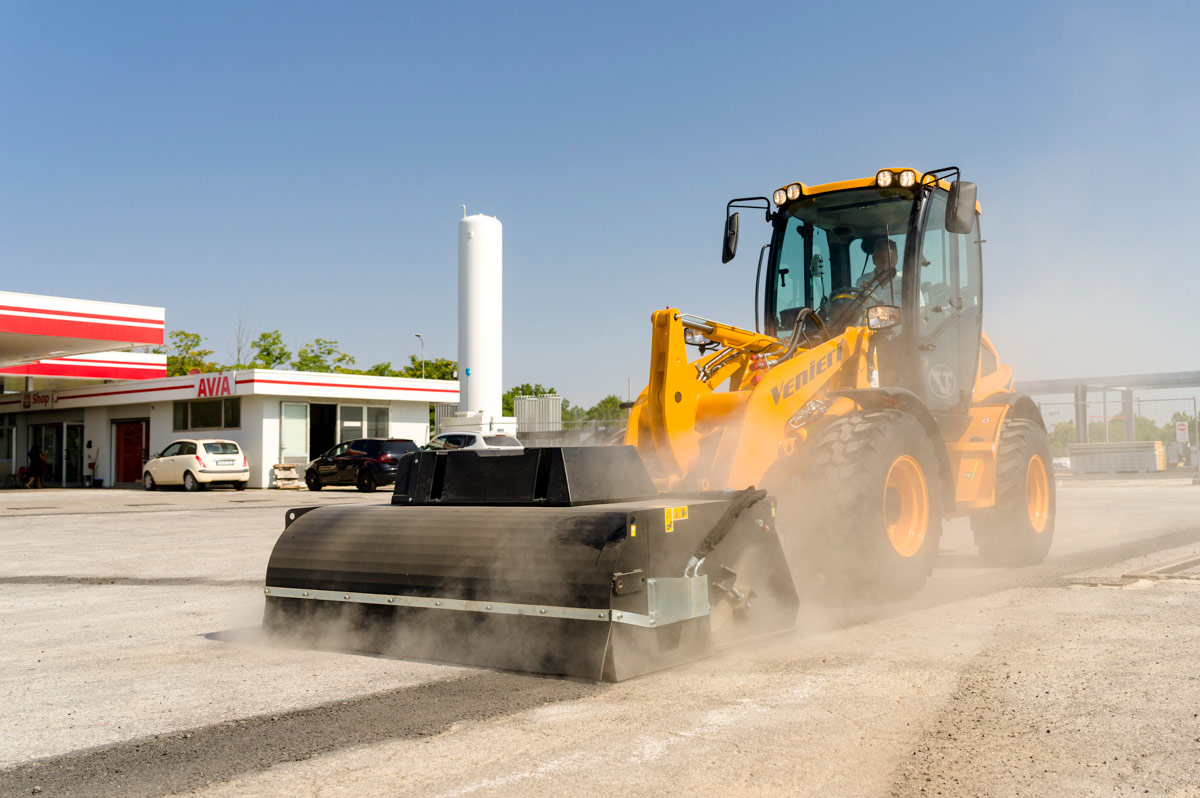

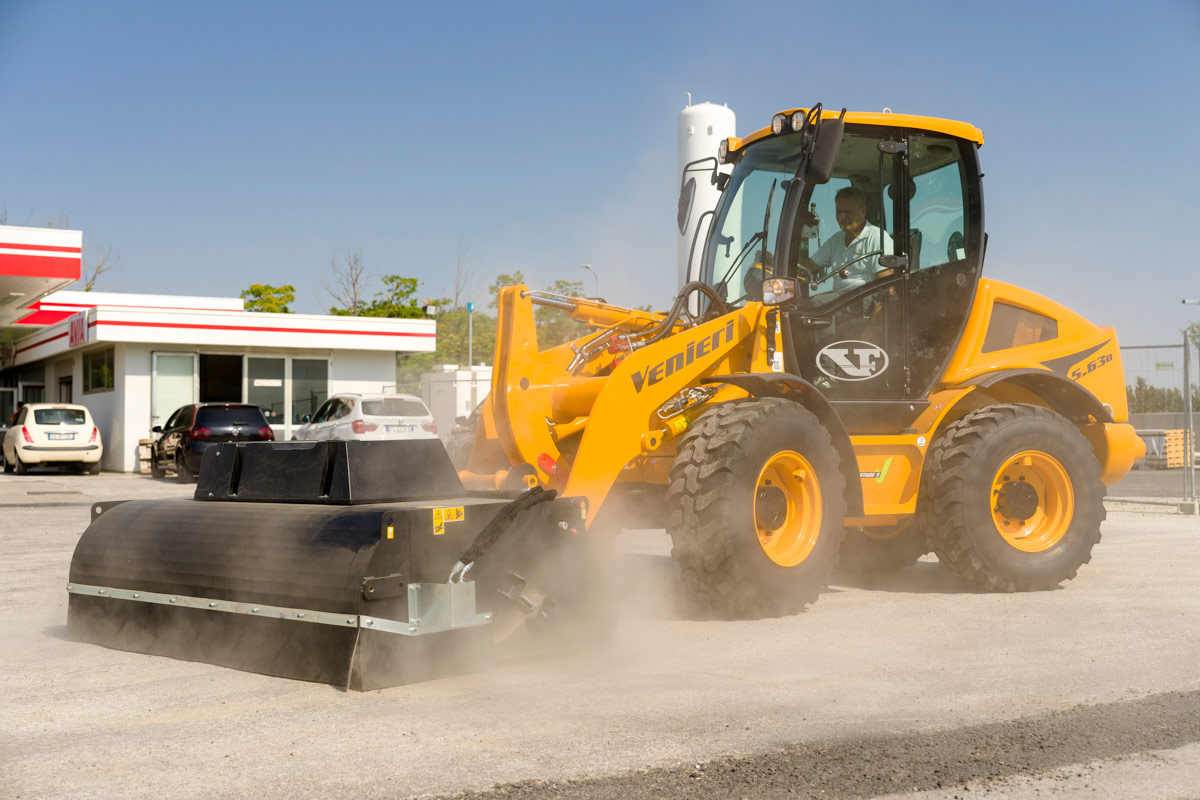

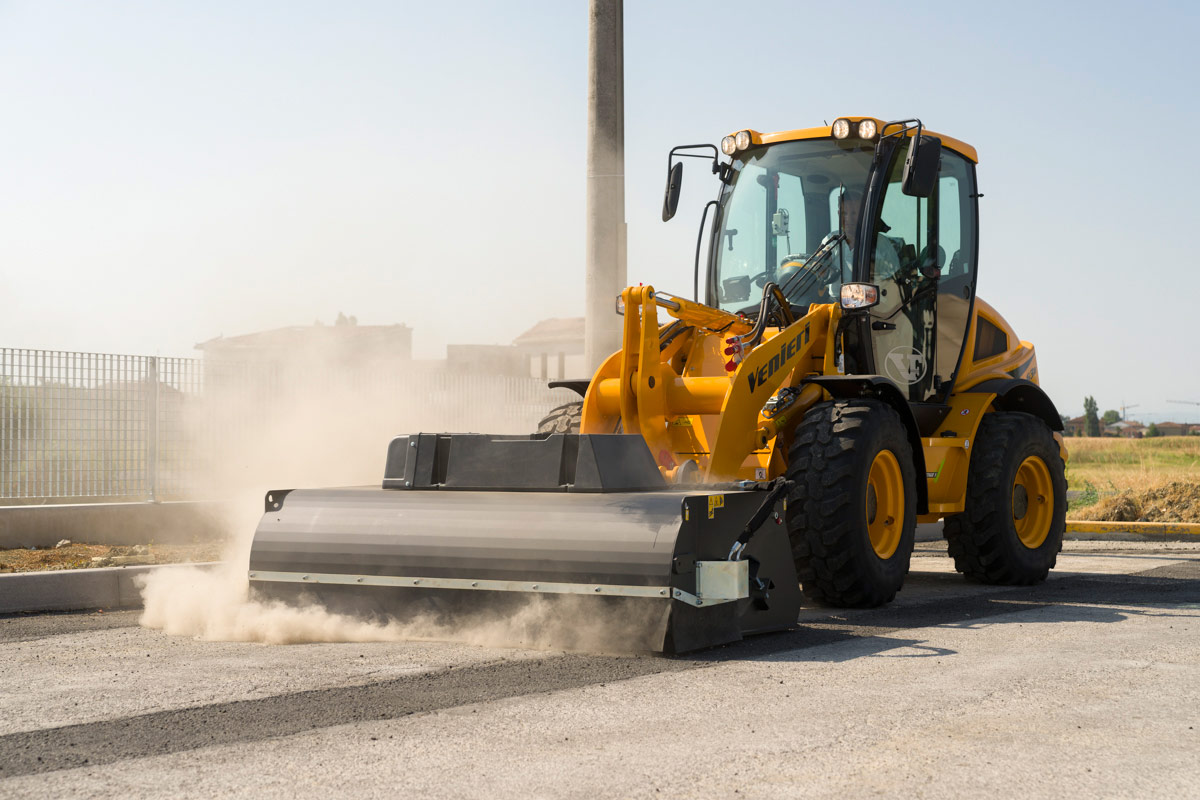

• Polishing brush
• Trencher
• High tip bucket
• High flow kit
• Unpressurized return pipe
• Double auxiliary line
• Rear hydraulic line (single effect)
